| General information |
|---|

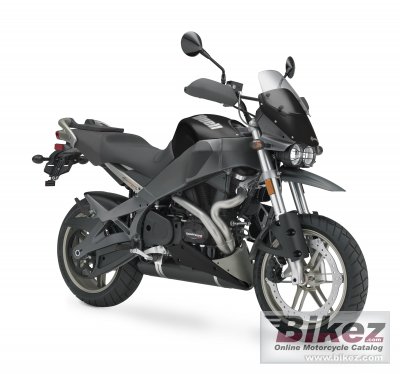

| Model: | Buell Ulysses XB12X |
| Year: | 2009 |
| Category: | Enduro / offroad |
| Rating: | 72.9 out of 100. Show full rating and compare with other bikes |
| Price as new (MSRP): | US$ 11495. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 1202.88 ccm (73.40 cubic inches) |
| Engine type: | V2, four-stroke |
| Power: | 103.00 HP (75.2 kW)) @ 6800 RPM |
| Torque: | 113.90 Nm (11.6 kgf-m or 84.0 ft.lbs) @ 6000 RPM |
| Compression: | 10.0:1 |
| Bore x stroke: | 88.9 x 96.8 mm (3.5 x 3.8 inches) |
| Valves per cylinder: | 2 |
| Fuel system: | Injection. 49 mm down draft DDFI III fuel injection |
| Fuel control: | OHV |
| Cooling system: | Oil & air |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Belt |
| Clutch: | Wet, multi-plate, compensated |
| Exhaust system: | Tuned, tri-pass resonance chamber with InterActive valve and mass-centralised mounting |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Aluminium frame with Uniplanar™ powertrain vibration isolation system, fuel in frame |
| Rake (fork angle): | 23.5° |
| Front suspension: | 47 mm Showa inverted forks with rearward offset axle, adjustable compression damping, rebound damping and spring preload |
| Front suspension travel: | 165 mm (6.5 inches) |
| Rear suspension: | Showa coil-over monoshock with remote reservoir and remote spring preload adjustment, fully adjustable (compression damping, rebound damping and spring preload) |
| Rear suspension travel: | 162 mm (6.4 inches) |
| Front tyre dimensions: | 120/70-ZR17 |
| Rear tyre dimensions: | 180/55-ZR17 |
| Front brakes: | Single disc. ZTL™ brake, 6-piston, fixed caliper; single-sided, inside-out, stainless steel, floating rotor |
| Front brakes diameter: | 375 mm (14.8 inches) |
| Rear brakes: | Single disc. Two-piston, direct mount caliper; stainless steel, fixed rotor |
| Rear brakes diameter: | 240 mm (9.4 inches) |
| Physical measures and capacities |
|---|
| Overall length: | 2,159 mm (85.0 inches) |
| Overall width: | 892 mm (35.1 inches) |
| Ground clearance: | 171 mm (6.8 inches) |
| Wheelbase: | 1,374 mm (54.1 inches) |
| Fuel capacity: | 16.65 litres (4.40 gallons) |
| Other specifications |
|---|
| Color options: | Thrust Blue; Barricade Orange |
