| General information |
|---|

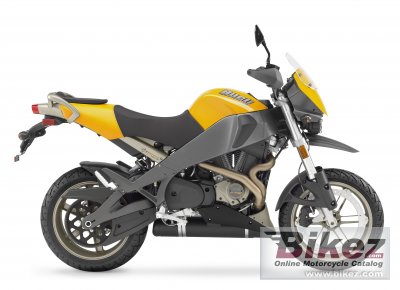

| Model: | Buell Ulysses XB12X |
| Year: | 2006 |
| Category: | Enduro / offroad |
| Rating: | 74.1 out of 100. Show full rating and compare with other bikes |
| Price as new (MSRP): | US$ 11495. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 1202.88 ccm (73.40 cubic inches) |
| Engine type: | V2, four-stroke |
| Power: | 103.00 HP (75.2 kW)) @ 6800 RPM |
| Torque: | 113.90 Nm (11.6 kgf-m or 84.0 ft.lbs) @ 6000 RPM |
| Compression: | 10.0:1 |
| Bore x stroke: | 88.9 x 96.8 mm (3.5 x 3.8 inches) |
| Fuel system: | Injection |
| Cooling system: | Oil & air |
| Gearbox: | 5-speed |
Transmission type,
final drive: | Belt |
| Clutch: | Wet, multiplate, compensated, reduced lever effort |
| Fuel consumption: | 4.05 litres/100 km (24.7 km/l or 58.08 mpg) |
| Greenhouse gases: | 94.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system: | InterActive exhaust, Mass centralized muffler with extended outlet - mounted under the bike |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Aluminum frame with Uniplanar™ Powertrain vibration isolation system |
| Rake (fork angle): | 22.0° |
| Trail: | 122 mm (4.8 inches) |
| Front suspension: | Showa® inverted fork with adjustable compression damping, rebound damping and spring preload |
| Front suspension travel: | 165 mm (6.5 inches) |
| Rear suspension: | Showa® Fully adjustable, coil-over monoshock with remote, underseat reservoir |
| Rear suspension travel: | 162 mm (6.4 inches) |
| Front tyre dimensions: | 120/70-R17 |
| Rear tyre dimensions: | 180/55-R17 |
| Front brakes: | Single disc |
| Rear brakes: | Single disc |
| Physical measures and capacities |
|---|
| Dry weight: | 192.8 kg (425.0 pounds) |
| Power/weight ratio: | 0.5343 HP/kg |
| Overall height: | 1,331 mm (52.4 inches) |
| Overall length: | 2,159 mm (85.0 inches) |
| Overall width: | 892 mm (35.1 inches) |
| Ground clearance: | 171 mm (6.8 inches) |
| Wheelbase: | 1,374 mm (54.1 inches) |
| Fuel capacity: | 16.65 litres (4.40 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Color options: | Midnight black, Barricade orange |
| Comments: | Also available with carburator. |
