| Borile's profilation of this bike |
| The front suspension is a Ceriani upside down 41 mm fork, while the rear suspension is a Paioli monoshock. Morad supplies the 17” alloy rims while the aluminium hubs come from Talon, the brakes are from Grimeca.
|
| General information |
|---|

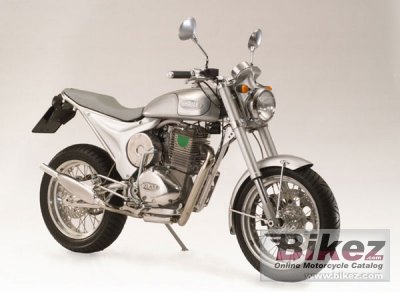

| Model: | Borile B500CR | | Year: | 2009 | | Category: | Allround | | Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. | | Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 487.00 ccm (29.72 cubic inches) | | Engine type: | Single cylinder | | Stroke: | 4 | | Compression: | 10.3:1 | | Bore x stroke: | 87.0 x 82.0 mm (3.4 x 3.2 inches) | | Fuel system: | Carburettor. Mikuni TM Ø36 | | Valves per cylinder: | 4 | | Fuel control: | OHC | | Ignition: | Electronic | | Starter: | Kick | | Lubrication system: | By pump | | Cooling system: | Air | | Gearbox: | 5-speed | Transmission type
final drive: | Chain | | Clutch: | Multidisc in oil bath | | Physical measures |
|---|
| Dry weight: | 117.0 kg (257.9 pounds) | | Seat height: | 850 mm (33.5 inches) If adjustable, lowest setting. | | Overall length: | 1,990 mm (78.3 inches) | | Overall width: | 720 mm (28.3 inches) | | Wheelbase: | 1,400 mm (55.1 inches) | | Chassis and dimensions |
|---|
| Frame type: | Cradle of round tubes in 7020 alloy | | Front suspension: | Ceriani upside down fork | | Front suspension travel: | 130 mm (5.1 inches) | | Rear suspension: | Mono Paioli with no levers | | Rear suspension travel: | 116 mm (4.6 inches) | | Front tyre dimensions: | 120/70-17 | | Rear tyre dimensions: | 150/70-17 | | Front brakes: | Single disc | | Front brakes diameter: | 320 mm (12.6 inches) | | Rear brakes: | Single disc | | Rear brakes diameter: | 220 mm (8.7 inches) | | Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 8.50 litres (2.25 gallons) | | Comments: | Italian made bike. | | Further information |
|---|
