| General information |
|---|

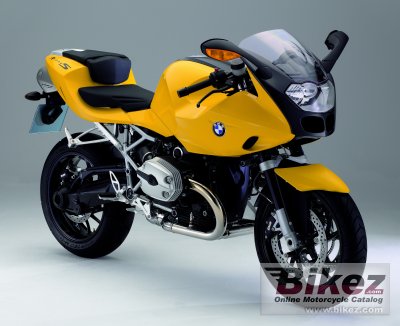

| Model: | BMW R 1200 S |
| Year: | 2009 |
| Category: | Sport |
| Rating: | 74 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 1170.00 ccm (71.39 cubic inches) |
| Engine type: | Two cylinder boxer, four-stroke |
| Power: | 120.69 HP (88.1 kW)) @ 8250 RPM |
| Torque: | 112.00 Nm (11.4 kgf-m or 82.6 ft.lbs) @ 6800 RPM |
| Top speed: | 200.0 km/h (124.3 mph) |
| Compression: | 12.5:1 |
| Bore x stroke: | 101.0 x 73.0 mm (4.0 x 2.9 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. Electronic intake pipe injection/BMS-K digital engine management with overrun fuel cut-off, twin spark ignition |
| Fuel control: | SOHC |
| Cooling system: | Oil & air |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Shaft drive (cardan) |
| Clutch: | Single dry plate clutch, hydraulically operated |
| Fuel consumption: | 4.30 litres/100 km (23.3 km/l or 54.70 mpg) |
| Greenhouse gases: | 99.8 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system: | Closed-loop 3-way catalytic converter, emission standard EU-3 |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Three-section frame consisting of front, middle and rear sections, load bearing engine-gearbox unit |
| Rake (fork angle): | 24.0° |
| Trail: | 87 mm (3.4 inches) |
| Front suspension: | BMW Motorrad Telelever |
| Front suspension travel: | 110 mm (4.3 inches) |
| Rear suspension: | Cast aluminium single-sided swing arm with BMW Motorrad Paralever |
| Rear suspension travel: | 120 mm (4.7 inches) |
| Front tyre dimensions: | 120/70-ZX17 |
| Rear tyre dimensions: | 180/55-ZX17 |
| Front brakes: | Double disc. Optional ABS |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc. Optional ABS |
| Rear brakes diameter: | 265 mm (10.4 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 190.0 kg (418.9 pounds) |
| Weight incl. oil, gas, etc: | 213.0 kg (469.6 pounds) |
| Power/weight ratio: | 0.6352 HP/kg |
| Seat height: | 830 mm (32.7 inches) If adjustable, lowest setting. |
| Overall height: | 1,177 mm (46.3 inches) |
| Overall length: | 2,151 mm (84.7 inches) |
| Overall width: | 870 mm (34.3 inches) |
| Wheelbase: | 1,487 mm (58.5 inches) |
| Fuel capacity: | 17.00 litres (4.49 gallons) |
| Reserve fuel capacity: | 2.00 litres (0.53 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Color options: | Shine yellow, Titan silver/magma red, Night black, White aluminium |
