| General information |
|---|

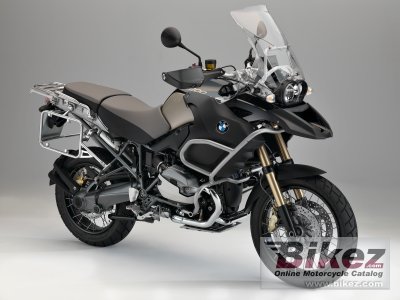

| Model: | BMW R 1200 GS Adventure |
| Year: | 2013 |
| Category: | Enduro / offroad |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Price as new (MSRP): | US$ 18350. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 1170.00 ccm (71.39 cubic inches) |
| Engine type: | Two cylinder boxer, two-stroke |
| Power: | 110.00 HP (80.3 kW)) @ 7750 RPM |
| Torque: | 89.00 Nm (9.1 kgf-m or 65.6 ft.lbs) @ 6000 RPM |
| Top speed: | 201.2 km/h (125.0 mph) |
| Compression: | 12.0:1 |
| Bore x stroke: | 101.0 x 73.0 mm (4.0 x 2.9 inches) |
| Fuel system: | Injection. Electronic intake pipe injection / BMS-K+ digital engine management with overrun fuel cut-off, twin spark ignition |
| Fuel control: | DOHC |
| Cooling system: | Oil & air |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Shaft drive (cardan) |
| Clutch: | Single dry plate clutch, hydraulically operated |
| Driveline: | Constant mesh |
| Fuel consumption: | 4.61 litres/100 km (21.7 km/l or 51.02 mpg) |
| Greenhouse gases: | 107.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Emission details: | Closed-loop 3-way catalytic converter, emission standard EU-3 |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Two-section frame consisting of front and rear sections, load- bearing engine-gearbox unit |
| Rake (fork angle): | 24.8° |
| Trail: | 89 mm (3.5 inches) |
| Front suspension: | BMW Motorrad Telelever |
| Front suspension travel: | 211 mm (8.3 inches) |
| Rear suspension: | Cast aluminium single-sided swing arm with BMW Motorrad Paralever |
| Rear suspension travel: | 221 mm (8.7 inches) |
| Front tyre dimensions: | 110/80-19 |
| Rear tyre dimensions: | 150/70-17 |
| Front brakes: | Double disc. Floating discs. Four-piston calipers. Switchable ABS. |
| Front brakes diameter: | 305 mm (12.0 inches) |
| Rear brakes: | Single disc. Floating disc. Two-piston calipers. Switchable ABS. |
| Rear brakes diameter: | 265 mm (10.4 inches) |
| Wheels: | Cross-spoke wheels |
| Physical measures and capacities |
|---|
| Dry weight: | 229.1 kg (505.0 pounds) |
| Weight incl. oil, gas, etc: | 255.8 kg (564.0 pounds) |
| Power/weight ratio: | 0.4802 HP/kg |
| Seat height: | 889 mm (35.0 inches) If adjustable, lowest setting. |
| Overall height: | 1,524 mm (60.0 inches) |
| Overall length: | 2,235 mm (88.0 inches) |
| Overall width: | 991 mm (39.0 inches) |
| Wheelbase: | 1,509 mm (59.4 inches) |
| Fuel capacity: | 32.93 litres (8.70 gallons) |
| Reserve fuel capacity: | 3.79 litres (1.00 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Electrical: | 12 V / 14 Ah, maintenance-free battery. |
| Color options: | Red, grey |
