| General information |
|---|

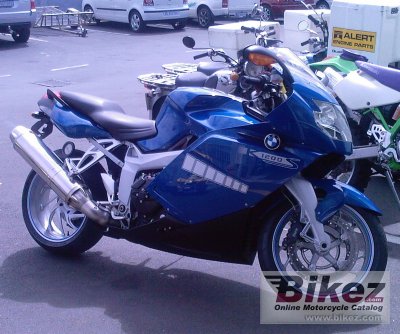

| Model: | BMW K 1200 S |
| Year: | 2005 |
| Category: | Sport |
| Rating: | 77.2 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 1157.00 ccm (70.60 cubic inches) |
| Engine type: | In-line four |
| Stroke: | 4 |
| Power: | 164.94 HP (120.4 kW)) @ 10250 RPM |
| Torque: | 130.00 Nm (13.3 kgf-m or 95.9 ft.lbs) @ 8250 RPM |
| Compression: | 13.0:1 |
| Bore x stroke: | 79.0 x 59.0 mm (3.1 x 2.3 inches) |
| Fuel system: | Injection. Electronic intake pipe injection / digital engine management including knock sensor (BMS-K) |
| Valves per cylinder: | 4 |
| Fuel control: | DOHC |
| Starter: | Electric |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type
final drive: | Shaft drive (cardan) |
| Clutch: | Multiple-disc clutch in oil bath, hydraulically operated |
| Physical measures |
|---|
| Dry weight: | 226.5 kg (499.3 pounds) |
| Weight incl. oil, gas, etc: | 248.0 kg (546.7 pounds) |
| Seat height: | 820 mm (32.3 inches) If adjustable, lowest setting. |
| Overall height: | 1,211 mm (47.7 inches) |
| Overall length: | 2,182 mm (85.9 inches) |
| Overall width: | 905 mm (35.6 inches) |
| Wheelbase: | 1,571 mm (61.9 inches) |
| Chassis and dimensions |
|---|
| Frame type: | Bridging frame, die-cast aluminium, load bearing engine |
| Rake (fork angle): | 29.0° |
| Trail: | 112 mm (4.4 inches) |
| Front suspension: | BMW Motorrad Duolever |
| Front suspension travel: | 115 mm (4.5 inches) |
| Rear suspension: | Die-cast aluminium single-sided swinging arm with BMW Motorrad Paralever |
| Rear suspension travel: | 135 mm (5.3 inches) |
| Front tyre dimensions: | 120/70-ZR17 |
| Rear tyre dimensions: | 190/50-ZR17 |
| Front brakes: | Double disc |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 265 mm (10.4 inches) |
| Speed and acceleration |
|---|
| Top speed: | 200.0 km/h (124.3 mph) |
| Power/weight ratio: | 0.7282 HP/kg |
| Other specifications |
|---|
| Fuel capacity: | 19.00 litres (5.02 gallons) |
| Fuel consumption pr. 10 km (6.2 miles): | 4.70 litres (1.24 gallons) |
| Comments: | ABS brakes. |
