| General information |
|---|

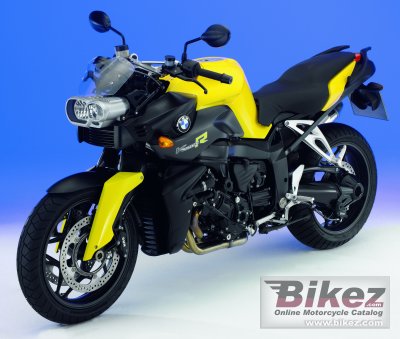

| Model: | BMW K 1200 R |
| Year: | 2006 |
| Category: | Naked bike |
| Rating: | 71.5 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 1157.00 ccm (70.60 cubic inches) |
| Engine type: | In-line four |
| Stroke: | 4 |
| Power: | 160.92 HP (117.5 kW)) @ 10250 RPM |
| Torque: | 127.00 Nm (12.9 kgf-m or 93.7 ft.lbs) @ 8250 RPM |
| Compression: | 13.0:1 |
| Bore x stroke: | 79.0 x 59.0 mm (3.1 x 2.3 inches) |
| Fuel system: | Injection. Electronic intake pipe injection / digital engine management including knock sensor (BMS-K) |
| Valves per cylinder: | 4 |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type
final drive: | Shaft drive (cardan) |
| Clutch: | Multiple-disc clutch in oil bath, hydraulically operated |
| More details | Consult a BMW repair manual. |
| Physical measures |
|---|
| Dry weight: | 211.0 kg (465.2 pounds) |
| Weight incl. oil, gas, etc: | 237.0 kg (522.5 pounds) |
| Seat height: | 820 mm (32.3 inches) If adjustable, lowest setting. |
| Overall height: | 1,230 mm (48.4 inches) |
| Overall length: | 2,228 mm (87.7 inches) |
| Overall width: | 856 mm (33.7 inches) |
| Wheelbase: | 1,580 mm (62.2 inches) |
| Chassis and dimensions |
|---|
| Frame type: | Bridging frame, die-cast aluminium, load bearing engine |
| Rake (fork angle): | 29.0° |
| Trail: | 101 mm (4.0 inches) |
| Front suspension: | BMW Motorrad Duolever |
| Front suspension travel: | 115 mm (4.5 inches) |
| Rear suspension: | Die-cast aluminium single-sided swinging arm with BMW Motorrad Paralever |
| Rear suspension travel: | 135 mm (5.3 inches) |
| Front tyre dimensions: | 120/70-ZR17 |
| Rear tyre dimensions: | 180/50-ZR17 |
| Front brakes: | Double disc |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 265 mm (10.4 inches) |
| Speed and acceleration |
|---|
| Power/weight ratio: | 0.7627 HP/kg |
| Other specifications |
|---|
| Fuel capacity: | 19.00 litres (5.02 gallons) |
| Fuel consumption pr. 10 km (6.2 miles): | 4.70 litres (1.24 gallons) |
