| General information |
|---|

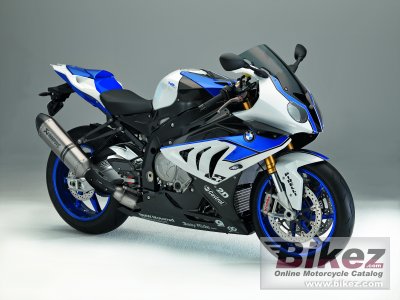

| Model: | BMW HP4 |
| Year: | 2013 |
| Category: | Sport |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Price as new (MSRP): | US$ 20525. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 999.00 ccm (60.96 cubic inches) |
| Engine type: | In-line four, four-stroke |
| Power: | 193.00 HP (140.9 kW)) @ 13000 RPM |
| Torque: | 83.00 Nm (8.5 kgf-m or 61.2 ft.lbs) @ 9750 RPM |
| Compression: | 13.0:1 |
| Bore x stroke: | 80.0 x 49.7 mm (3.1 x 2.0 inches) |
| Fuel system: | Injection. Electroinc injection, digital engine electronics with integrated knock control (BMS-KP) |
| Fuel control: | DOHC |
| Cooling system: | Oil & air |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet multidisc anti-hopping clutch, mechanically operated |
| Driveline: | 17/45 chain; Shift Assistant: clutchless upshifting under acceleration; Launch Control: Launch control for race starts |
| Fuel consumption: | 5.70 litres/100 km (17.5 km/l or 41.27 mpg) |
| Greenhouse gases: | 132.2 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Emission details: | 1 closed-loop 3-way catalytic converters, EU-3 norm with electronically controlled interference pipe and acoustic valves |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Aluminium composite bridge frame, partially self-supporting |
| Rake (fork angle): | 24.0° |
| Trail: | 99 mm (3.9 inches) |
| Front suspension: | Upside down telescopic fork 46 mm, dynamic damping control DDC, adjustable spring preload, electronically adjustable damping |
| Front suspension travel: | 119 mm (4.7 inches) |
| Rear suspension: | Aluminium dual swing arm, dynamic damping control DDC (central spring strut), hydraulically adjustable spring preload, adjustable compression and rebound damping |
| Rear suspension travel: | 130 mm (5.1 inches) |
| Front tyre dimensions: | 120/70-17 |
| Rear tyre dimensions: | 200/55-17 |
| Front brakes: | Double disc. Floating discs. Four-piston calipers. ABS. |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc. Floating disc. Single-piston caliper. ABS. |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Wheels: | Forged aluminium wheels |
| Physical measures and capacities |
|---|
| Dry weight: | 169.2 kg (373.0 pounds) |
| Weight incl. oil, gas, etc: | 199.1 kg (439.0 pounds) |
| Power/weight ratio: | 1.1407 HP/kg |
| Seat height: | 820 mm (32.3 inches) If adjustable, lowest setting. |
| Overall height: | 1,138 mm (44.8 inches) |
| Overall length: | 2,055 mm (80.9 inches) |
| Overall width: | 826 mm (32.5 inches) |
| Wheelbase: | 1,422 mm (56.0 inches) |
| Fuel capacity: | 17.41 litres (4.60 gallons) |
| Reserve fuel capacity: | 3.79 litres (1.00 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Electrical: | 12 V / 7 Ah, maintenance-free battery. |
| Color options: | White/blue/black |
