| General information |
|---|

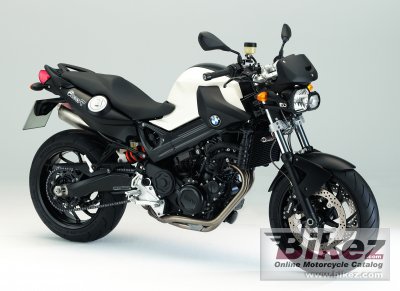

| Model: | BMW F 800 R |
| Year: | 2009 |
| Category: | Sport |
| Rating: | 56.6 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 798.00 ccm (48.69 cubic inches) |
| Engine type: | Twin |
| Stroke: | 4 |
| Power: | 87.00 HP (63.5 kW)) @ 8000 RPM |
| Torque: | 86.00 Nm (8.8 kgf-m or 63.4 ft.lbs) @ 6000 RPM |
| Compression: | 12.0:1 |
| Bore x stroke: | 82.0 x 75.6 mm (3.2 x 3.0 inches) |
| Fuel system: | Injection. Electronic intake pipe injection / digital engine management (BMS-K) |
| Valves per cylinder: | 4 |
| Fuel control: | DOHC |
| Starter: | Electric |
| Lubrication system: | Dry sump |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type
final drive: | Belt |
| Clutch: | Multiple-disc clutch in oil bath, mechanically operated |
| Physical measures |
|---|
| Dry weight: | 177.0 kg (390.2 pounds) |
| Weight incl. oil, gas, etc: | 199.0 kg (438.7 pounds) |
| Seat height: | 775 mm (30.5 inches) If adjustable, lowest setting. |
| Alternate seat height: | 825 mm (32.5 inches) If adjustable, highest setting. |
| Overall height: | 1,160 mm (45.7 inches) |
| Overall length: | 2,145 mm (84.4 inches) |
| Overall width: | 905 mm (35.6 inches) |
| Wheelbase: | 1,466 mm (57.7 inches) |
| Chassis and dimensions |
|---|
| Frame type: | Bridge-type aluminium frame, load-bearing engine |
| Rake (fork angle): | 25.8° |
| Trail: | 95 mm (3.7 inches) |
| Front suspension: | Telescopic fork, Ø 43 mm |
| Front suspension travel: | 125 mm (4.9 inches) |
| Rear suspension: | Cast aluminium single-sided swing arm with eccentric adjustment for rear axle, central spring strut, spring pre-load hydraulically adjustable (continuously variable) at handwheel, rebound damping adjustable |
| Rear suspension travel: | 125 mm (4.9 inches) |
| Front tyre dimensions: | 120/70-ZR17 |
| Rear tyre dimensions: | 180/55-ZR17 |
| Front brakes: | Double disc. Optional ABS |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc. Optional ABS |
| Rear brakes diameter: | 265 mm (10.4 inches) |
| Exhaust system: | Closed-loop 3-way catalytic converter, emission standard EU-3 |
| Speed and acceleration |
|---|
| Top speed: | 200.0 km/h (124.3 mph) |
| Power/weight ratio: | 0.4915 HP/kg |
| Other specifications |
|---|
| Fuel capacity: | 16.00 litres (4.23 gallons) |
| Reserve fuel capacity: | 2.00 litres (0.53 gallons) |
| Fuel consumption pr. 10 km (6.2 miles): | 3.40 litres (0.90 gallons) |
| Color options: | White aluminium metallic matt, Orange, white/black |
