| General information |
|---|

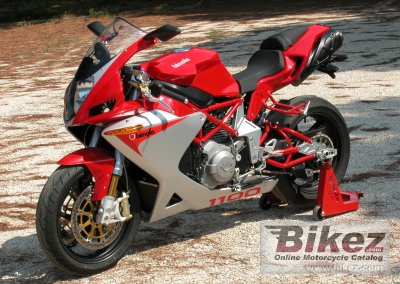

| Model: | Bimota DB5 S |
| Year: | 2007 |
| Category: | Sport |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 1079.00 ccm (65.84 cubic inches) |
| Engine type: | Twin |
| Stroke: | 2 |
| Power: | 95.00 HP (69.3 kW)) @ 7000 RPM |
| Torque: | 102.97 Nm (10.5 kgf-m or 76.0 ft.lbs) @ 5500 RPM |
| Compression: | 10.5:1 |
| Bore x stroke: | 98.0 x 71.5 mm (3.9 x 2.8 inches) |
| Fuel system: | Injection. Electronic fule injection-45mm throttle body |
| Valves per cylinder: | 2 |
| Lubrication system: | Wet sump |
| Cooling system: | Air |
| Gearbox: | 6-speed |
| Clutch: | Oil Bath Clutch, multi-disc |
| Physical measures |
|---|
| Dry weight: | 189.0 kg (416.7 pounds) |
| Front percentage of weight: | 51.0 |
| Rear percentage of weight: | 49.0 |
| Seat height: | 810 mm (31.9 inches) If adjustable, lowest setting. |
| Overall height: | 1,230 mm (48.4 inches) |
| Overall length: | 2,045 mm (80.5 inches) |
| Overall width: | 750 mm (29.5 inches) |
| Ground clearance: | 170 mm (6.7 inches) |
| Wheelbase: | 1,440 mm (56.7 inches) |
| Chassis and dimensions |
|---|
| Front suspension: | UD Marzocchi TiN Coated Fork Full Adjustable (Pre-load, Compression, Rebound) |
| Rear suspension: | Monoshock Extreme Tech Full Adjustable (Pre-load -External Hydraulic Device, Compression, Rebound |
| Front tyre dimensions: | 120/70-17 |
| Rear tyre dimensions: | 180/55-17 |
| Front brakes: | Double disc. Double Ø320 mm Floating Discs Brembo, Radial Caliper Brembo 4-Pistons, 4-Pads |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc. Ø230 mm Disc Brembo, 2-Pistons, 2-Pads Brembo |
| Rear brakes diameter: | 230 mm (9.1 inches) |
| Speed and acceleration |
|---|
| Power/weight ratio: | 0.5026 HP/kg |
| Other specifications |
|---|
| Fuel capacity: | 16.00 litres (4.23 gallons) |
