| General information |
|---|

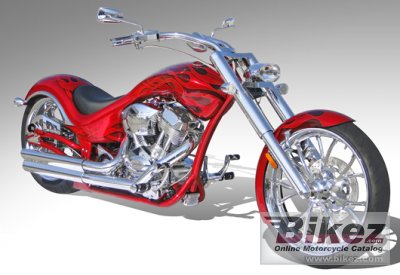

| Model: | Big Dog Wolf |
| Year: | 2011 |
| Category: | Custom / cruiser |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Price as new (MSRP): | US$ 35900. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 1976.00 ccm (120.58 cubic inches) |
| Engine type: | V2, four-stroke |
| Engine details: | 56 degree X-Wedge engine |
| Compression: | 9.9:1 |
| Bore x stroke: | 108.0 x 108.0 mm (4.3 x 4.3 inches) |
| Fuel system: | Injection. Electronic Fuel Injection (CLEFI) |
| Fuel control: | OHV |
| Cooling system: | Air |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Belt |
| Chassis, suspension, brakes and wheels |
|---|
| Rake (fork angle): | 40.0° |
| Trail: | 149 mm (5.9 inches) |
| Front suspension: | 41 mm Telescopic Sleeved |
| Rear suspension: | Hidden shocks |
| Front tyre dimensions: | 130/760-R23 |
| Rear tyre dimensions: | 220/50-R20 |
| Front brakes: | Single disc. 4-piston diff bore |
| Rear brakes: | Single disc. 4-piston drive side |
| Physical measures and capacities |
|---|
| Dry weight: | 349.0 kg (769.4 pounds) |
| Seat height: | 648 mm (25.5 inches) If adjustable, lowest setting. |
| Overall length: | 2,844 mm (112.0 inches) |
| Wheelbase: | 2,120 mm (83.5 inches) |
| Fuel capacity: | 17.00 litres (4.49 gallons) |
| Reserve fuel capacity: | 1.50 litres (0.40 gallons) |
| Oil capacity: | 3.10 litres (0.20 quarts) |
| Other specifications |
|---|
| Starter: | Electric |
| Electrical: | 310 CCA/Sealed AGM battery |
| Factory warranty: | 24 months |
| Color options: | Red |
| Comments: | Drive Side Brake. 45-Degree Total Rake |
