| General information |
|---|

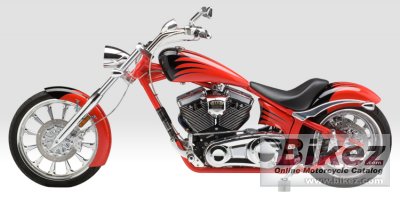

| Model: | Big Dog Coyote |
| Year: | 2009 |
| Category: | Custom / cruiser |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 1917.00 ccm (116.98 cubic inches) |
| Engine type: | V2 |
| Stroke: | 4 |
| Compression: | 9.6:1 |
| Bore x stroke: | 104.8 x 111.1 mm (4.1 x 4.4 inches) |
| Fuel system: | Carburettor |
| Fuel control: | OHV |
| Starter: | Electric |
| Gearbox: | 6-speed |
Transmission type
final drive: | Belt |
| Physical measures |
|---|
| Dry weight: | 321.1 kg (708.0 pounds) |
| Seat height: | 622 mm (24.5 inches) If adjustable, lowest setting. |
| Overall length: | 2,604 mm (102.5 inches) |
| Ground clearance: | 114 mm (4.5 inches) |
| Wheelbase: | 1,969 mm (77.5 inches) |
| Chassis and dimensions |
|---|
| Frame type: | Steel |
| Rake (fork angle): | 39.0° |
| Trail: | 122 mm (4.8 inches) |
| Front suspension: | Telescopic |
| Front tyre dimensions: | 120/70-21 |
| Rear tyre dimensions: | 300/35-18 |
| Front brakes: | Single disc. 4-piston diff bore |
| Rear brakes: | Single disc. 4-piston |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 17.78 litres (4.70 gallons) |
| Reserve fuel capacity: | 2.64 litres (0.70 gallons) |
| Oil capacity: | 2.80 litres (0.18 quarts) |
