| General information |
|---|

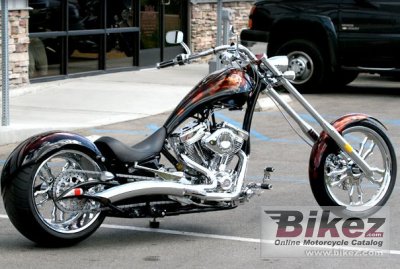

| Model: | Big Bear Choppers Sled 100 EFI Evolution |
| Year: | 2009 |
| Category: | Custom / cruiser |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 1638.81 ccm (100.00 cubic inches) |
| Engine type: | V2 |
| Stroke: | 4 |
| Power: | 95.00 HP (69.3 kW)) |
| Torque: | 149.16 Nm (15.2 kgf-m or 110.0 ft.lbs) |
| Bore x stroke: | 104.8 x 108.0 mm (4.1 x 4.3 inches) |
| Fuel system: | Injection. S and S Electronic Fuel Injection |
| Starter: | Electric |
| Lubrication system: | S and S High volume oil pump |
| Gearbox: | 6-speed |
Transmission type
final drive: | Chain |
| Physical measures |
|---|
| Dry weight: | 317.5 kg (700.0 pounds) |
| Seat height: | 508 mm (20.0 inches) If adjustable, lowest setting. |
| Overall length: | 2,921 mm (115.0 inches) |
| Wheelbase: | 2,235 mm (88.0 inches) |
| Chassis and dimensions |
|---|
| Frame type: | BBC Sled Softail |
| Rake (fork angle): | 40.0° |
| Trail: | 95 mm (3.8 inches) |
| Front suspension: | BBC Smooth Mount Hidden Axle |
| Rear suspension: | Progressive |
| Rear suspension travel: | 76 mm (3.0 inches) |
| Front tyre dimensions: | 90/80-21 |
| Rear tyre dimensions: | 300/80-18 |
| Front brakes: | Single disc. P.M. 4-piston calipers |
| Rear brakes: | Single disc. BBC P.M. 4-piston calipers |
| Speed and acceleration |
|---|
| Power/weight ratio: | 0.2992 HP/kg |
| Other specifications |
|---|
| Fuel capacity: | 12.30 litres (3.25 gallons) |
| Color options: | Gross Black, satin black, charcoal, silver, black cherry, candy red, firecracker red, orange, blue. Various paint schemes. |
| Comments: | Model also called BBC Sled Chopper 100 SMOOTH™ EFI Evolution. |
