| General information |
|---|

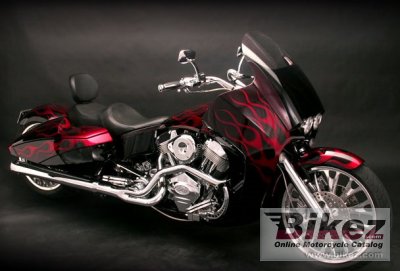

| Model: | Big Bear Choppers G.T.X. Fairing 100 |
| Year: | 2009 |
| Category: | Custom / cruiser |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 1638.81 ccm (100.00 cubic inches) |
| Engine type: | V2 |
| Stroke: | 4 |
| Power: | 95.00 HP (69.3 kW)) |
| Torque: | 149.16 Nm (15.2 kgf-m or 110.0 ft.lbs) |
| Bore x stroke: | 101.6 x 101.6 mm (4.0 x 4.0 inches) |
| Fuel system: | Injection. S and S® closed-loop electronic fuel injection |
| Starter: | Electric |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type
final drive: | Belt |
| Physical measures |
|---|
| Dry weight: | 385.6 kg (850.0 pounds) |
| Seat height: | 648 mm (25.5 inches) If adjustable, lowest setting. |
| Wheelbase: | 2,159 mm (85.0 inches) |
| Chassis and dimensions |
|---|
| Frame type: | BBC G.T.X. Softail |
| Rake (fork angle): | 36.0° |
| Trail: | 95 mm (3.8 inches) |
| Front suspension: | BBC Smooth Mount Hidden Axle |
| Rear suspension: | Progressive |
| Front tyre dimensions: | 120/80-21 |
| Rear tyre dimensions: | 300/50-18 |
| Front brakes: | Double disc |
| Rear brakes: | Single disc |
| Speed and acceleration |
|---|
| Power/weight ratio: | 0.2464 HP/kg |
| Other specifications |
|---|
| Fuel capacity: | 19.30 litres (5.10 gallons) |
| Oil capacity: | 4.70 litres (0.31 quarts) |
| Comments: | Model also called BBC GTX Fairing S and S 100 SMOOTH™ EFI Evolution. |
