| General information |
|---|

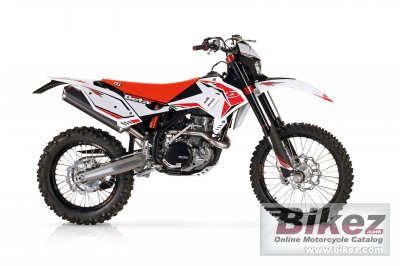

| Model: | Beta RR 4T 525 |
| Year: | 2010 |
| Category: | Enduro / offroad |
| Rating: | 65.3 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 510.00 ccm (31.12 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Compression: | 11.0:1 |
| Bore x stroke: | 95.0 x 72.0 mm (3.7 x 2.8 inches) |
| Ignition: | DC-CDI without trembler with variable ignition timing, Kokusan type. |
| Lubrication system: | 2 oil pumps |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | wet multi-disc clutch |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Molybdenum steel with double cradle split above the exhaust port |
| Front suspension: | Hydraulic USD fork with ø45 mm shaft |
| Rear suspension: | Monoshock with progressive compound lever |
| Front tyre dimensions: | 90/90-21 |
| Rear tyre dimensions: | 140/80-18 |
| Front brakes: | Single disc. Double-piston floating caliper |
| Front brakes diameter: | 255 mm (10.0 inches) |
| Rear brakes: | Single disc. Single-piston floating caliper |
| Rear brakes diameter: | 240 mm (9.4 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 117.5 kg (259.0 pounds) |
| Weight incl. oil, gas, etc: | 127.0 kg (280.0 pounds) |
| Seat height: | 940 mm (37.0 inches) If adjustable, lowest setting. |
| Overall height: | 1,255 mm (49.4 inches) |
| Overall length: | 2,270 mm (89.4 inches) |
| Overall width: | 813 mm (32.0 inches) |
| Ground clearance: | 320 mm (12.6 inches) |
| Wheelbase: | 1,500 mm (59.1 inches) |
| Fuel capacity: | 8.50 litres (2.25 gallons) |
| Reserve fuel capacity: | 1.00 litres (0.26 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Color options: | Red/white/black |
