2008 Beta ARK LC Tribe specifications, pictures, reviews and rating

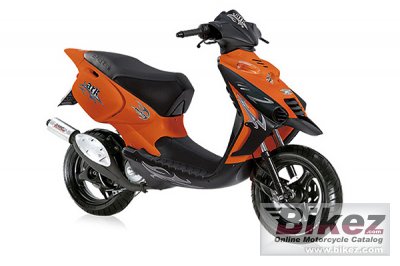

Picture credits - Beta. Click to submit more pictures.
|General moped information|
|Model:||Beta ARK LC Tribe|
|Rating:||Do you know this bike?|
Click here to rate it. We miss 1 vote to show the rating.
|Engine and transmission|
|Displacement:||49.00 ccm (2.99 cubic inches)|
|Engine type:||Single cylinder, two-stroke|
|Bore x stroke:||40.0 x 39.2 mm (1.6 x 1.5 inches)|
|Fuel system:||Carburettor. Dell┤Orto PHVA 12|
|Lubrication system:||With mechanical pump - mix gasoline-oil 1,5% (with synthetic oil)|
|Clutch:||Dry automatic centrifugal type|
|Chassis, suspension, brakes and wheels|
|Frame type:||tubular steel|
|Front suspension:||Hydraulic fork with °32 mm shaft|
|Front suspension travel:||95 mm (3.7 inches)|
|Rear suspension:||Monoshock with adjustable spring preload|
|Rear suspension travel:||89 mm (3.5 inches)|
|Front tyre dimensions:||130/60-13|
|Rear tyre dimensions:||130/60-13|
|Front brakes:||Single disc|
|Front brakes diameter:||190 mm (7.5 inches)|
|Rear brakes:||Single disc|
|Rear brakes diameter:||190 mm (7.5 inches)|
|Physical measures and capacities|
|Dry weight:||88.0 kg (194.0 pounds)|
|Overall height:||1,150 mm (45.3 inches)|
|Overall length:||1,740 mm (68.5 inches)|
|Overall width:||830 mm (32.7 inches)|
|Ground clearance:||215 mm (8.5 inches)|
|Fuel capacity:||7.50 litres (1.98 gallons)|
|Reserve fuel capacity:||1.30 litres (0.34 gallons)|
