| General moped information |
|---|

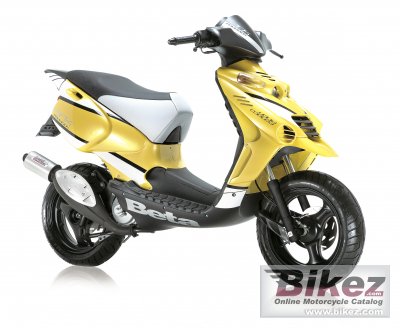

| Model: | Beta ARK LC Paddock |
| Year: | 2008 |
| Category: | Scooter |
| Rating: | 55 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 49.00 ccm (2.99 cubic inches) |
| Engine type: | Single cylinder |
| Stroke: | 2 |
| Compression: | 12.0:1 |
| Bore x stroke: | 40.0 x 39.2 mm (1.6 x 1.5 inches) |
| Fuel system: | Carburettor. Dell´Orto PHVA 12 |
| Lubrication system: | With mechanical pump - mix gasoline-oil 1,5% (with synthetic oil) |
| Cooling system: | Liquid |
| Gearbox: | Automatic |
Transmission type
final drive: | Belt |
| Clutch: | Dry automatic centrifugal type |
| Physical measures |
|---|
| Dry weight: | 88.0 kg (194.0 pounds) |
| Overall height: | 1,150 mm (45.3 inches) |
| Overall length: | 1,740 mm (68.5 inches) |
| Overall width: | 830 mm (32.7 inches) |
| Ground clearance: | 215 mm (8.5 inches) |
| Chassis and dimensions |
|---|
| Frame type: | tubular steel |
| Front suspension: | Hydraulic fork with ø32 mm shaft |
| Rear suspension: | Monoshock with adjustable spring preload |
| Front tyre dimensions: | 130/60-13 |
| Rear tyre dimensions: | 130/60-13 |
| Front brakes: | Single disc |
| Front brakes diameter: | 190 mm (7.5 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 190 mm (7.5 inches) |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 7.50 litres (1.98 gallons) |
| Reserve fuel capacity: | 1.30 litres (0.34 gallons) |
