| Beta's profilation of this bike |
| The question is: what can come out from the fusion between a scooter, born with an Off-Road DNA, and a raging Enduro 4-stroke¿ You can get the answer just mounting on the brand new Beta Ark RR Racing.
The aggressive red flou coloring, and the racing graphics inspired by the RR Enduro 4t riding the World Enduro Championship, give the right energy dose to a sporty and aggressive scooter.
Robust frame, brilliant engine, powerful double disc braking system, hydraulic fork, adjustable monoshock and… all the guts courtesy of a ready to race enduro bike: that’s Ark RR Racing successful key!
|
| General moped information |
|---|

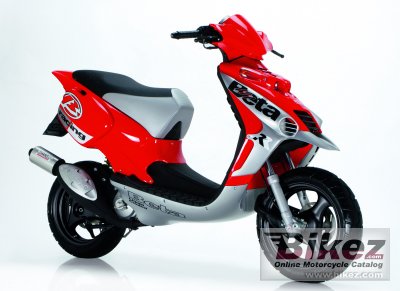

| Model: | Beta Ark 50 RR | | Year: | 2007 | | Category: | Scooter | | Rating: | 67.6 out of 100. Show full rating and compare with other bikes | | Engine and transmission |
|---|
| Displacement: | 49.00 ccm (2.99 cubic inches) | | Engine type: | Single cylinder | | Stroke: | 2 | | Compression: | 12.0:1 | | Bore x stroke: | 40.0 x 39.2 mm (1.6 x 1.5 inches) | | Fuel system: | Carburettor. Dell´Orto PHVA 12 | | Ignition: | Electronic Ducati 12V - 60W | | Lubrication system: | With mechanical pump - mix gasoline-oil 1,5% (with synthetic oil) | | Cooling system: | Liquid | | Gearbox: | Automatic | Transmission type
final drive: | Belt | | Clutch: | Dry automatic centrifugal type | | Physical measures |
|---|
| Dry weight: | 88.0 kg (194.0 pounds) | | Overall height: | 830 mm (32.7 inches) | | Overall length: | 750 mm (29.5 inches) | | Overall width: | 1,150 mm (45.3 inches) | | Ground clearance: | 215 mm (8.5 inches) | | Wheelbase: | 1,740 mm (68.5 inches) | | Chassis and dimensions |
|---|
| Frame type: | tubular steel | | Front suspension: | Hydraulic fork with ø32 mm shaft | | Front suspension travel: | 32 mm (1.3 inches) | | Rear suspension: | Monoshock with adjustable spring preload | | Front tyre dimensions: | 130/60-13 | | Rear tyre dimensions: | 130/60-13 | | Front brakes: | Single disc | | Front brakes diameter: | 190 mm (7.5 inches) | | Rear brakes: | Single disc | | Rear brakes diameter: | 190 mm (7.5 inches) | | Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 7.50 litres (1.98 gallons) | | Reserve fuel capacity: | 1.30 litres (0.34 gallons) | | Further information |
|---|
