| General information |
|---|

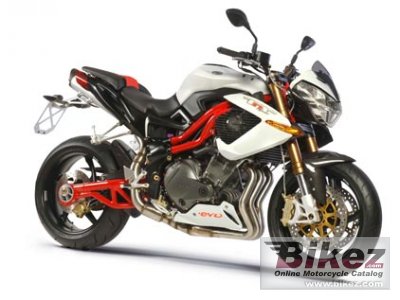

| Model: | Benelli TNT 1130 Sport |
| Year: | 2011 |
| Category: | Naked bike |
| Rating: | 65.8 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 1131.00 ccm (69.01 cubic inches) |
| Engine type: | In-line three, four-stroke |
| Engine details: | Cylinders tilted forward 15 degrees. |
| Power: | 135.44 HP (98.9 kW)) @ 9250 RPM |
| Torque: | 117.00 Nm (11.9 kgf-m or 86.3 ft.lbs) @ 6750 RPM |
| Compression: | 11.9:1 |
| Bore x stroke: | 88.0 x 62.0 mm (3.5 x 2.4 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. Injection |
| Fuel control: | DOHC |
| Lubrication system: | Wet sump |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet clutch with 11 disks |
| Driveline: | Straight toothed primary gear, chain final |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Decomposable, front ASD steel trellis, rear alluminium alloy casting |
| Rake (fork angle): | 24.0° |
| Trail: | 95 mm (3.7 inches) |
| Front suspension: | Upside down fork totally adjustable Ø 50 mm |
| Front suspension travel: | 120 mm (4.7 inches) |
| Rear suspension: | ASD steel tube trellis swingarm with totally adjustable shock absorber |
| Rear suspension travel: | 120 mm (4.7 inches) |
| Front tyre dimensions: | 120/70-;17 |
| Rear tyre dimensions: | 180/55-;17 |
| Front brakes: | Single disc |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Wheels: | Die-cast aluminium alloy |
| Physical measures and capacities |
|---|
| Dry weight: | 208.0 kg (458.6 pounds) |
| Weight incl. oil, gas, etc: | 215.0 kg (474.0 pounds) |
| Power/weight ratio: | 0.6512 HP/kg |
| Seat height: | 780 mm (30.7 inches) If adjustable, lowest setting. |
| Overall height: | 1,050 mm (41.3 inches) |
| Overall length: | 2,100 mm (82.7 inches) |
| Overall width: | 790 mm (31.1 inches) |
| Wheelbase: | 1,419 mm (55.9 inches) |
| Fuel capacity: | 17.00 litres (4.49 gallons) |
| Reserve fuel capacity: | 4.00 litres (1.06 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Color options: | Silver/red/black |
