| BamX's profilation of this bike |
| The four stroke engine is smaller version of a car engine in which the gas is ignited and the oil can be reused again. It provides the economy of the gasoline consumption. |
| General moped information |
|---|

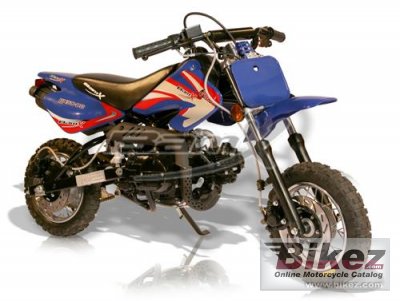

| Model: | BamX BX50-DB Pee Wee | | Year: | 2009 | | Category: | Enduro / offroad | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 49.50 ccm (3.02 cubic inches) | | Engine type: | Single cylinder | | Stroke: | 4 | | Power: | 2.00 HP (1.5 kW)) @ 6000 RPM | | Torque: | 2.80 Nm (0.3 kgf-m or 2.1 ft.lbs) @ 5500 RPM | | Compression: | 9.0:1 | | Bore x stroke: | 39.0 x 41.1 mm (1.5 x 1.6 inches) | | Fuel system: | Carburettor | | Ignition: | CDI | | Lubrication system: | Pressure/Splash | | Cooling system: | Air | | Gearbox: | Automatic | Transmission type
final drive: | Chain | | Physical measures |
|---|
| Dry weight: | 47.6 kg (105.0 pounds) | | Seat height: | 610 mm (24.0 inches) If adjustable, lowest setting. | | Ground clearance: | 178 mm (7.0 inches) | | Wheelbase: | 1,092 mm (43.0 inches) | | Chassis and dimensions |
|---|
| Front suspension: | Dual Front Shocks | | Rear suspension: | Swing Arm Mono Shock | | Front tyre dimensions: | 2.50-10 | | Rear tyre dimensions: | 2.75-10 | | Front brakes: | Single disc | | Rear brakes: | Single disc | | Speed and acceleration |
|---|
| Power/weight ratio: | 0.0420 HP/kg | | Other specifications |
|---|
| Fuel capacity: | 4.00 litres (1.06 gallons) | | Oil capacity: | 0.90 litres (0.06 quarts) | | Color options: | Red/blue | | Further information |
|---|
