| General information |
|---|

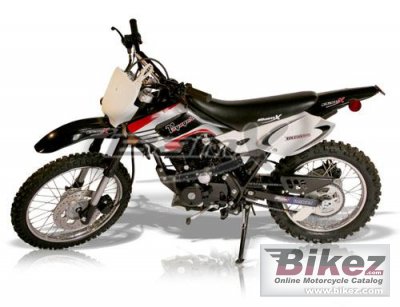

| Model: | BamX BX150-DB Voyager |
| Year: | 2009 |
| Category: | Enduro / offroad |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 149.00 ccm (9.09 cubic inches) |
| Engine type: | Single cylinder |
| Stroke: | 4 |
| Power: | 9.50 HP (6.9 kW)) |
| Torque: | 12.50 Nm (1.3 kgf-m or 9.2 ft.lbs) @ 5500 RPM |
| Compression: | 8.8:1 |
| Bore x stroke: | 62.0 x 49.5 mm (2.4 x 1.9 inches) |
| Fuel system: | Carburettor |
| Ignition: | CDI |
| Starter: | Electric & kick |
| Lubrication system: | Pressure/Splash |
| Cooling system: | Air |
| Gearbox: | 5-speed |
Transmission type
final drive: | Chain |
| Physical measures |
|---|
| Dry weight: | 102.1 kg (225.0 pounds) |
| Seat height: | 762 mm (30.0 inches) If adjustable, lowest setting. |
| Ground clearance: | 229 mm (9.0 inches) |
| Wheelbase: | 1,295 mm (51.0 inches) |
| Chassis and dimensions |
|---|
| Front suspension: | Dual Inverted Front Shocks |
| Rear suspension: | Swing Arm Mono Shock |
| Front tyre dimensions: | 3.00-19 |
| Rear tyre dimensions: | 3.50-16 |
| Front brakes: | Single disc |
| Rear brakes: | Single disc |
| Speed and acceleration |
|---|
| Power/weight ratio: | 0.0931 HP/kg |
| Other specifications |
|---|
| Fuel capacity: | 5.00 litres (1.32 gallons) |
| Oil capacity: | 1.30 litres (0.09 quarts) |
