| General information |
|---|

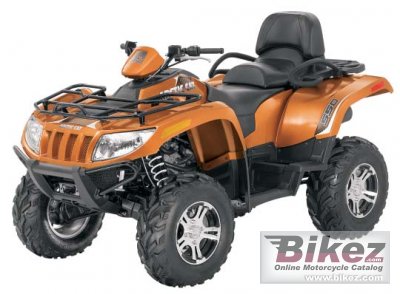

| Model: | Arctic Cat TRV 550 GT | | Year: | 2011 | | Category: | ATV | | Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. | | Price as new (MSRP): | US$ 9549. Prices depend on country, taxes, accessories, etc. | | Engine and transmission |
|---|
| Displacement: | 545.00 ccm (33.26 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Compression: | 9.8:1 | | Bore x stroke: | 92.0 x 82.0 mm (3.6 x 3.2 inches) | | Valves per cylinder: | 4 | | Fuel system: | Injection. EFI | | Fuel control: | SOHC | | Cooling system: | Liquid | | Gearbox: | Automatic | Transmission type,
final drive: | Belt | | Driveline: | Automatic CVT with EBS, Hi/Lo Range and Reverse. 2WD /4 WD + Diff Lock | | Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Double A-Arm | | Front suspension travel: | 254 mm (10.0 inches) | | Rear suspension: | Double A-Arm | | Rear suspension travel: | 254 mm (10.0 inches) | | Front tyre dimensions: | 25/8-12 | | Rear tyre dimensions: | 25/10-12 | | Front brakes: | Single disc. Hydraulic | | Rear brakes: | Single disc. Hydraulic | | Wheels: | Aluminum | | Physical measures and capacities |
|---|
| Dry weight: | 326.2 kg (719.1 pounds) | | Overall height: | 1,219 mm (48.0 inches) | | Overall length: | 2,504 mm (98.6 inches) | | Overall width: | 1,206 mm (47.5 inches) | | Ground clearance: | 279 mm (11.0 inches) | | Wheelbase: | 1,473 mm (58.0 inches) | | Fuel capacity: | 201.00 litres (53.10 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Seat: | Removable Passenger Seat and Optional 3-in-1 Versatility | | Color options: | Copper Metallic | | Comments: | Power Steering. Electric 2WD/4WD and Front Differential Lock. | | Further information |
|---|
