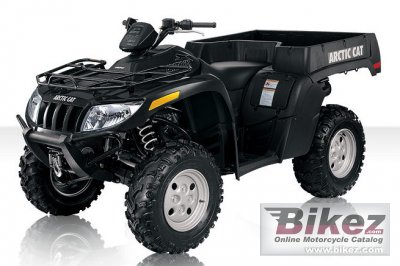

Arctic Cat TBX 700 H1 EFI 2010
2010 Arctic Cat TBX 700 H1 EFI specifications, pictures, reviews and rating
Picture credits - Arctic Cat. Click to submit more pictures.
|Arctic Cat's profilation of this bike|
|You´re in the league of riders looking for a hard-working utility machine, convenient enough to haul, but still fun enough to ride.|
|Model:||Arctic Cat TBX 700 H1 EFI|
|Rating:||Do you know this bike?|
Click here to rate it. We miss 2 votes to show the rating.
|Price as new (MSRP):||US$ 8799. Prices depend on country, taxes, accessories, etc.|
|Engine and transmission|
|Displacement:||695.00 ccm (42.41 cubic inches)|
|Engine type:||Single cylinder, four-stroke|
|Bore x stroke:||102.0 x 85.0 mm (4.0 x 3.3 inches)|
|Valves per cylinder:||4|
|Chassis, suspension, brakes and wheels|
|Front suspension:||Double A-Arm|
|Front suspension travel:||254 mm (10.0 inches)|
|Rear suspension:||Double A-Arm|
|Rear suspension travel:||254 mm (10.0 inches)|
|Front tyre dimensions:||25/8-12|
|Rear tyre dimensions:||25/10-12|
|Front brakes:||Single disc. Hydraulic|
|Rear brakes:||Single disc. Hydraulic|
|Physical measures and capacities|
|Dry weight:||357.4 kg (787.9 pounds)|
|Overall height:||1,219 mm (48.0 inches)|
|Overall length:||2,489 mm (98.0 inches)|
|Overall width:||1,206 mm (47.5 inches)|
|Ground clearance:||279 mm (11.0 inches)|
|Wheelbase:||1,473 mm (58.0 inches)|
|Fuel capacity:||22.00 litres (5.81 gallons)|
|Comments:||2/4WD with reverse. High/low range. Diff lock. EBS.|
