| General information |
|---|

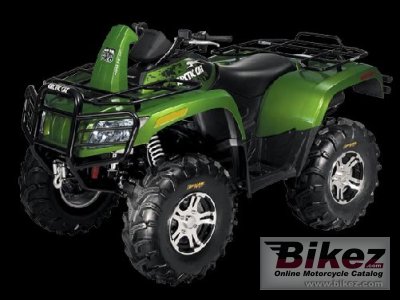

| Model: | Arctic Cat 700 H1 EFI MudPro | | Year: | 2009 | | Category: | ATV | | Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. | | Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 695.00 ccm (42.41 cubic inches) | | Engine type: | V2 | | Stroke: | 4 | | Bore x stroke: | 102.0 x 85.0 mm (4.0 x 3.3 inches) | | Fuel system: | Injection. EFI | | Valves per cylinder: | 4 | | Fuel control: | SOHC | | Cooling system: | Liquid | | Gearbox: | Automatic | Transmission type
final drive: | Belt | | Physical measures |
|---|
| Dry weight: | 359.7 kg (793.0 pounds) | | Overall height: | 1,314 mm (51.8 inches) | | Overall width: | 1,207 mm (47.5 inches) | | Ground clearance: | 356 mm (14.0 inches) | | Chassis and dimensions |
|---|
| Front suspension: | Double A-arm | | Front suspension travel: | 254 mm (10.0 inches) | | Rear suspension: | Double A-arm | | Rear suspension travel: | 254 mm (10.0 inches) | | Front tyre dimensions: | 28/10-12 | | Rear tyre dimensions: | 28/12-12 | | Front brakes: | Single disc | | Rear brakes: | Single disc | | Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 24.60 litres (6.50 gallons) | | Color options: | Metallic green | | Comments: | 2/4WD drive with reverse. Snorkel system. Special mud tires. Winch. Bumpers. | | Further information |
|---|
