12 Arctic Cat 550i LTD specificationsArctic Cat 550i LTD 2012

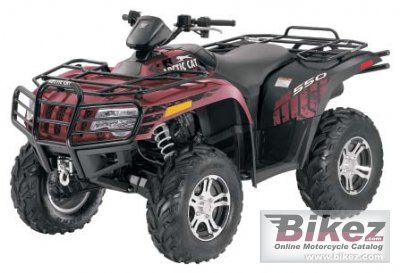

2012 Arctic Cat 550i LTD photo
Picture credits - Arctic Cat. Click to submit more pictures.
2012 Arctic Cat 550i LTD

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale

Tip a friend
List related bikes



General information
Model:Arctic Cat 550i LTD
Year:2012
Category:ATV
Rating:Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating.
Engine and transmission
Displacement:545.00 ccm (33.26 cubic inches)
Engine type:Single cylinder, four-stroke
Bore x stroke:92.0 x 82.0 mm (3.6 x 3.2 inches)
Valves per cylinder:4
Fuel system:Injection. EFI
Fuel control:SOHC
Cooling system:Liquid
Gearbox:Automatic
Transmission type,
final drive:
Belt
Driveline:Automatic CVT with EBS, Hi/Lo Range and Reverse. 2/4 WD + Diff Lock
Chassis, suspension, brakes and wheels
Front suspension:Double A-Arm
Front suspension travel:254 mm (10.0 inches)
Rear suspension:Double A-Arm
Rear suspension travel:254 mm (10.0 inches)
Front tyre dimensions:25/8-12
Rear tyre dimensions:25/10-12
Front brakes:Single disc. Hydraulic
Rear brakes:Single disc. Hydraulic
Wheels:12 Machined Aluminum Wheels
Physical measures and capacities
Dry weight:318.0 kg (701.1 pounds)
Overall height:1,219 mm (48.0 inches)
Overall length:2,197 mm (86.5 inches)
Overall width:1,206 mm (47.5 inches)
Ground clearance:279 mm (11.0 inches)
Wheelbase:1,334 mm (52.5 inches)
Other specifications
Starter:Electric
Instruments:Digital/analogue
Electrical:Alternator Capacity: 25.0 amps
Carrying capacity:Front Rack Capacity 100 lbs / 45.4 kg. Rear Rack Capacity 200 lbs / 90.8 kg. Towing Capacity 1,050 lbs / 476.3 kg
Color options:Arctic Green Metallic, Desert Red
Comments:Electronic Power Steering, Front and Rear Bumpers, Winch.
