Arctic Cat 550i 2012
2012 Arctic Cat 550i specifications, pictures, reviews and rating

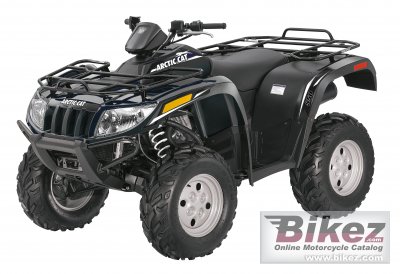

Picture credits - Arctic Cat. Click to submit more pictures.
|Model:||Arctic Cat 550i|
|Rating:||Do you know this bike?|
Click here to rate it. We miss 2 votes to show the rating.
|Engine and transmission|
|Displacement:||545.00 ccm (33.26 cubic inches)|
|Engine type:||Single cylinder, four-stroke|
|Bore x stroke:||92.0 x 82.0 mm (3.6 x 3.2 inches)|
|Valves per cylinder:||4|
|Fuel system:||Injection. EFI|
|Driveline:||On-the-fly 2wd/4wd W/diff Lock|
|Chassis, suspension, brakes and wheels|
|Front suspension:||Double A-Arm|
|Front suspension travel:||254 mm (10.0 inches)|
|Rear suspension:||Double A-Arm|
|Rear suspension travel:||254 mm (10.0 inches)|
|Front tyre dimensions:||25/8-12|
|Rear tyre dimensions:||25/10-12|
|Front brakes:||Single disc. Hydraulic|
|Rear brakes:||Single disc. Hydraulic|
|Physical measures and capacities|
|Dry weight:||306.6 kg (675.9 pounds)|
|Overall height:||1,219 mm (48.0 inches)|
|Overall length:||2,154 mm (84.8 inches)|
|Overall width:||1,206 mm (47.5 inches)|
|Ground clearance:||279 mm (11.0 inches)|
|Wheelbase:||1,270 mm (50.0 inches)|
|Fuel capacity:||21.60 litres (5.71 gallons)|
|Electrical:||25.0 amps alternator|
|Carrying capacity:||Front Rack Capacity 100 lbs / 45.4 kg. Rear Rack Capacity 200 lbs / 90.8 kg. Towing Capacity 1,050 lbs / 476.3 kg|
|Color options:||Black, Green|
