| General information |
|---|

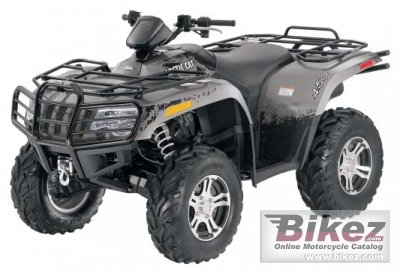

| Model: | Arctic Cat 450 LTD | | Year: | 2011 | | Category: | ATV | | Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. | | Price as new (MSRP): | US$ 7799. Prices depend on country, taxes, accessories, etc. | | Engine and transmission |
|---|
| Displacement: | 443.00 ccm (27.03 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Compression: | 9.8:1 | | Bore x stroke: | 89.0 x 71.2 mm (3.5 x 2.8 inches) | | Valves per cylinder: | 4 | | Fuel system: | Injection. EFI | | Fuel control: | SOHC | | Cooling system: | Liquid | | Gearbox: | Automatic | Transmission type,
final drive: | Belt | | Driveline: | Automatic CVT with EBS, Hi/Lo Range and Reverse. 2/4 WD + Diff Lock | | Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Double A-Arm | | Front suspension travel: | 254 mm (10.0 inches) | | Rear suspension: | Double A-Arm | | Rear suspension travel: | 254 mm (10.0 inches) | | Front tyre dimensions: | 25/8-12 | | Rear tyre dimensions: | 25/10-12 | | Front brakes: | Single disc | | Rear brakes: | Single disc | | Wheels: | 12´ Machined Aluminum Wheels | | Physical measures and capacities |
|---|
| Dry weight: | 322.0 kg (709.9 pounds) | | Overall height: | 1,219 mm (48.0 inches) | | Overall length: | 2,197 mm (86.5 inches) | | Overall width: | 1,206 mm (47.5 inches) | | Ground clearance: | 279 mm (11.0 inches) | | Wheelbase: | 1,334 mm (52.5 inches) | | Other specifications |
|---|
| Starter: | Electric | | Electrical: | Alternator Capacity: 18.0 amps | | Carrying capacity: | Front Rack Capacity 100 lbs / 45.4 kg. Rear Rack Capacity 200 lbs / 90.8 kg. Towing Capacity 1,050 lbs / 476.3 kg | | Color options: | Tungsten Metallic Paint | | Comments: | Front and Rear Heavy-Duty Bumpers,
3000lb Winch. | | Further information |
|---|
