| General information |
|---|

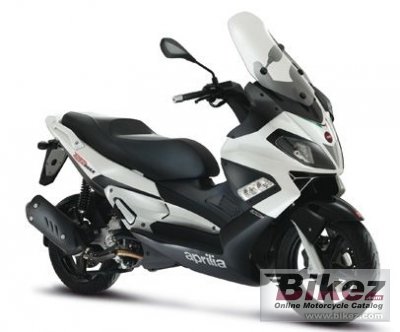

| Model: | Aprilia SR Max 125 |
| Year: | 2012 |
| Category: | Scooter |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 124.00 ccm (7.57 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 15.00 HP (10.9 kW)) @ 9250 RPM |
| Torque: | 12.00 Nm (1.2 kgf-m or 8.9 ft.lbs) @ 8000 RPM |
| Compression: | 11.5:1 |
| Bore x stroke: | 57.0 x 48.6 mm (2.2 x 1.9 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. EFI |
| Fuel control: | OHC |
| Lubrication system: | Wet sump. |
| Gearbox: | Automatic |
Transmission type,
final drive: | Belt |
| Clutch: | Automatic centrifugal dry clutch |
| Emission details: | Euro 3 |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Double cradle trellis in high strength steel tubing |
| Front suspension: | 35 mm Ø hydraulic telescopic fork |
| Rear suspension: | Double hydraulic shock absorber with three-position spring preload adjustment |
| Front tyre dimensions: | 120/70-15 |
| Rear tyre dimensions: | 140/60-14 |
| Front brakes: | Single disc |
| Front brakes diameter: | 260 mm (10.2 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Physical measures and capacities |
|---|
| Seat height: | 815 mm (32.1 inches) If adjustable, lowest setting. |
| Overall height: | 1,515 mm (59.6 inches) |
| Overall length: | 2,110 mm (83.1 inches) |
| Overall width: | 780 mm (30.7 inches) |
| Fuel capacity: | 15.50 litres (4.10 gallons) |
| Reserve fuel capacity: | 2.80 litres (0.74 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Electrical: | Generator: 300 W |
| Color options: | Black, White |
