| General information |
|---|

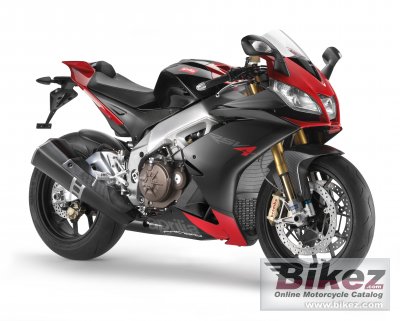

| Model: | Aprilia RSV4 Factory |
| Year: | 2009 |
| Category: | Sport |
| Rating: | 73.2 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 998.20 ccm (60.91 cubic inches) |
| Engine type: | V4 |
| Stroke: | 4 |
| Power: | 180.00 HP (131.4 kW)) @ 12500 RPM |
| Torque: | 115.00 Nm (11.7 kgf-m or 84.8 ft.lbs) @ 10000 RPM |
| Compression: | 12.8:1 |
| Bore x stroke: | 78.0 x 52.3 mm (3.1 x 2.1 inches) |
| Fuel system: | Injection. Integrated electronic engine management system. Indirect multipoint electronic injection. 4 throttle bodies, 8 injectors. Airbox. |
| Valves per cylinder: | 4 |
| Fuel control: | DOHC |
| Ignition: | Electronic digital ignition integrated in fuel management system. |
| Starter: | Electric |
| Lubrication system: | Wet sump. Double trochoid pump with oil cooler. |
| Cooling system: | Oil & air |
| Gearbox: | 6-speed |
Transmission type
final drive: | Chain |
| Clutch: | Multi-plate clutch in oil bath. |
| Physical measures |
|---|
| Dry weight: | 179.0 kg (394.6 pounds) |
| Seat height: | 810 mm (31.9 inches) If adjustable, lowest setting. |
| Overall height: | 1,165 mm (45.9 inches) |
| Overall length: | 2,050 mm (80.7 inches) |
| Overall width: | 715 mm (28.1 inches) |
| Wheelbase: | 1,424 mm (56.1 inches) |
| Chassis and dimensions |
|---|
| Trail: | 102 mm (4.0 inches) |
| Front suspension: | 43 mm Ohlins titanium nitride coated upside-down fork. External adjustment system for rebound, compression and preload. Shortened fork bottoms with radial caliper fittings. |
| Rear suspension: | Double arch aluminium swingarm. Öhlins monoshock with piggy-back cylinder. Adjustments for compression, rebound, spring preload and length. |
| Front tyre dimensions: | 120/70-ZR17 |
| Rear tyre dimensions: | 190/55-ZR17 |
| Front brakes: | Double disc. Bremo |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc. Bremo |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Exhaust system: | 4 into 2 into 1. Lambda probe. |
| Speed and acceleration |
|---|
| Power/weight ratio: | 1.0056 HP/kg |
| Other specifications |
|---|
| Fuel capacity: | 17.00 litres (4.49 gallons) |
