| General information |
|---|

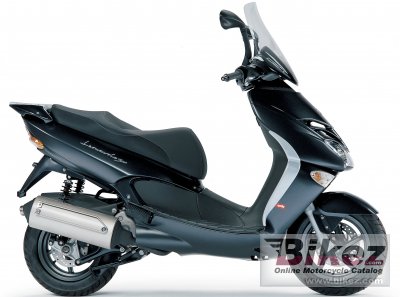

| Model: | Aprilia Leonardo 300 |
| Year: | 2005 |
| Category: | Scooter |
| Rating: | 72.9 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 264.50 ccm (16.14 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Compression: | 10.0:1 |
| Bore x stroke: | 71.0 x 66.8 mm (2.8 x 2.6 inches) |
| Valves per cylinder: | 2 |
| Fuel system: | Carburettor. Mikuni BS 26 |
| Fuel control: | OHC |
| Ignition: | Electronic |
| Lubrication system: | Wet sump. Forced circulation with orbital pump |
| Cooling system: | Liquid |
Transmission type,
final drive: | Chain |
| Clutch: | Automatic centrifugal dry clutch |
| Exhaust system: | Catalysed with secondary air system. Conforms to Euro 2 standards. |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | High tensile tubular steel. Single spar at front, upper double cradle at rear. |
| Front suspension: | 35 mm hydraulic fork with forward mounted wheel. |
| Front suspension travel: | 90 mm (3.5 inches) |
| Rear suspension: | Engine unit acting as swinging arm. |
| Rear suspension travel: | 104 mm (4.1 inches) |
| Front tyre dimensions: | 130/70-12 |
| Rear tyre dimensions: | 130/70-12 |
| Front brakes: | Single disc |
| Front brakes diameter: | 220 mm (8.7 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Physical measures and capacities |
|---|
| Seat height: | 678 mm (26.7 inches) If adjustable, lowest setting. |
| Overall height: | 1,410 mm (55.5 inches) |
| Overall length: | 1,865 mm (73.4 inches) |
| Overall width: | 770 mm (30.3 inches) |
| Ground clearance: | 250 mm (9.8 inches) |
| Wheelbase: | 1,340 mm (52.8 inches) |
| Fuel capacity: | 9.30 litres (2.46 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Color options: | Blue Main, Titan Grey |
