| General information |
|---|

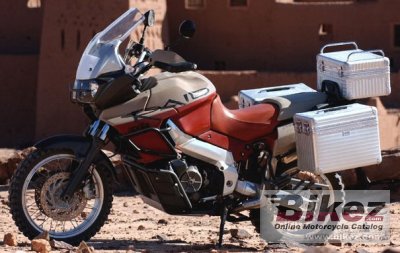

| Model: | Aprilia Caponord Rally Raid |
| Year: | 2005 |
| Category: | Allround |
| Rating: | 76 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 997.00 ccm (60.84 cubic inches) |
| Engine type: | V2, four-stroke |
| Power: | 98.00 HP (71.5 kW)) @ 8250 RPM |
| Torque: | 95.00 Nm (9.7 kgf-m or 70.1 ft.lbs) @ 6250 RPM |
| Compression: | 10.4:1 |
| Bore x stroke: | 97.0 x 67.5 mm (3.8 x 2.7 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. Integrated electronic engine management system. Indirect multi-point electronic injection. Lambda probe oxygen sensor in exhaust system. 47 mm diameter throttle bodies. |
| Ignition: | Digital electronic ignition with TSI (Twin Spark Ignition) with two spark plugs per cylinder. Ignition timing integrated in the injection control system. |
| Lubrication system: | Dry sump with separate oil reservoir. |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Multiple disk in oil bath with patented PPC power-assisted hydraulic control. |
| Exhaust system: | Twin stainless steel silencers, one catalyser per silencer. |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Sloping parallel twin spar frame in aluminium-magnesium alloy. |
| Trail: | 129 mm (5.1 inches) |
| Front suspension: | Marzocchi 50 mm hydraulic telescopic fork. Piston and cartridge motocross type fork hydraulics. Compression adjustment (on RH leg) and rebound adjustment (on LH leg). |
| Front suspension travel: | 200 mm (7.9 inches) |
| Rear suspension: | Aluminium alloy swing-arm. New rising rate linkage with APS (Aprilia Progressive System). Sachs hydraulic monoshock with mechanical compression and rebound adjustment and hydraulic preload adjustment.Separate nitrogen reservoir. |
| Rear suspension travel: | 200 mm (7.9 inches) |
| Front tyre dimensions: | 110/80-19. |
| Rear tyre dimensions: | 150/70-17. |
| Front brakes: | Double disc |
| Front brakes diameter: | 300 mm (11.8 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 272 mm (10.7 inches) |
| Physical measures and capacities |
|---|
| Seat height: | 860 mm (33.9 inches) If adjustable, lowest setting. |
| Wheelbase: | 1,568 mm (61.7 inches) |
| Fuel capacity: | 25.00 litres (6.61 gallons) |
| Reserve fuel capacity: | 5.00 litres (1.32 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Comments: | Alternative off-road tires available. |
