| General information |
|---|

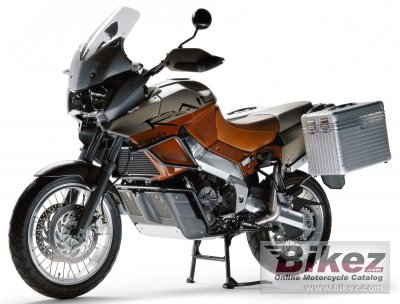

| Model: | Aprilia Caponord Rally Raid |
| Year: | 2004 |
| Category: | Enduro / offroad |
| Rating: | 75.8 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 997.62 ccm (60.87 cubic inches) |
| Engine type: | Twin |
| Stroke: | 4 |
| Power: | 98.00 HP (71.5 kW)) @ 8250 RPM |
| Torque: | 95.00 Nm (9.7 kgf-m or 70.1 ft.lbs) @ 6250 RPM |
| Compression: | 11.8:1 |
| Bore x stroke: | 97.0 x 67.5 mm (3.8 x 2.7 inches) |
| Fuel system: | Injection |
| Valves per cylinder: | 4 |
| Fuel control: | DOHC |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type
final drive: | Chain |
| Physical measures |
|---|
| Seat height: | 860 mm (33.9 inches) If adjustable, lowest setting. |
| Overall height: | 1,460 mm (57.5 inches) |
| Overall length: | 2,300 mm (90.6 inches) |
| Overall width: | 876 mm (34.5 inches) |
| Wheelbase: | 1,568 mm (61.7 inches) |
| Chassis and dimensions |
|---|
| Frame type: | Box section sloping twin-spar made of aluminium alloy |
| Rake (fork angle): | 27.8° |
| Trail: | 129 mm (5.1 inches) |
| Front suspension: | Marzocchi 50 mm hydraulic telescopic fork |
| Front suspension travel: | 200 mm (7.9 inches) |
| Rear suspension: | Aluminium alloy swing-arm |
| Rear suspension travel: | 200 mm (7.9 inches) |
| Front tyre dimensions: | 120/70-ZR17 |
| Rear tyre dimensions: | 180/55-ZR17 |
| Front brakes: | Double disc |
| Front brakes diameter: | 300 mm (11.8 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 272 mm (10.7 inches) |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 25.00 litres (6.61 gallons) |
| Reserve fuel capacity: | 5.00 litres (1.32 gallons) |
| Color options: | Red/grey |
