| General information |
|---|

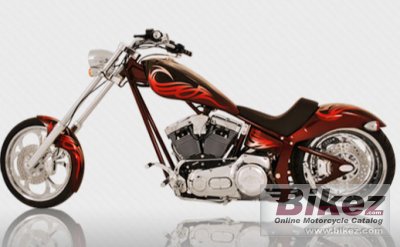

| Model: | American IronHorse Judge |
| Year: | 2009 |
| Category: | Custom / cruiser |
| Rating: | 47.6 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 1917.40 ccm (117.00 cubic inches) |
| Engine type: | V2 |
| Stroke: | 4 |
| Compression: | 10.2:1 |
| Fuel system: | Carburettor |
| Fuel control: | OHV |
| Starter: | Electric |
| Cooling system: | Air |
| Gearbox: | 6-speed |
Transmission type
final drive: | Belt |
| Physical measures |
|---|
| Dry weight: | 315.0 kg (694.5 pounds) |
| Ground clearance: | 110 mm (4.3 inches) |
| Chassis and dimensions |
|---|
| Frame type: | Soft-style with 4 inch back bone stretch and 8 inch downtube stretch |
| Rake (fork angle): | 42.0° |
| Front suspension: | Telescopic |
| Rear suspension: | A-frame swingarm |
| Front tyre dimensions: | 90/90-H21 |
| Rear tyre dimensions: | 240/40-V18 |
| Front brakes: | Single disc. 4-piston polished calipers |
| Rear brakes: | Single disc. 4-piston polished calipers |
| Exhaust system: | 2-into-1 Dyno tuned exhaust system with integral heat shields |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 13.24 litres (3.50 gallons) |
| Comments: | Optional 110 or 124 C.I. engines. |
