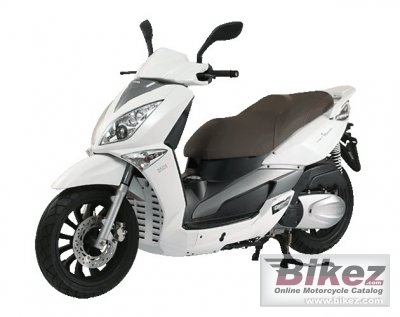

| Aeon's profilation of this bike |
| It has been thought and designed in order to help you face traffic roads and to grant you fast and comfortable travels in your town. To cross the city will be more easier and fun from today. |
| General information |
|---|
| Model: | Aeon Urban 350i | | Year: | 2012 | | Category: | Scooter | | Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. | | Engine and transmission |
|---|
| Displacement: | 313.00 ccm (19.10 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Power: | 22.80 HP (16.6 kW)) @ 90008 RPM | | Torque: | 30.00 Nm (3.1 kgf-m or 22.1 ft.lbs) @ 6500 RPM | | Compression: | 10.6:1 | | Bore x stroke: | 78.0 x 65.8 mm (3.1 x 2.6 inches) | | Valves per cylinder: | 2 | | Fuel system: | Injection | | Fuel control: | SOHC | | Ignition: | Digital | | Lubrication system: | Wet sump, Oil pump pressurized. | | Cooling system: | Liquid | | Gearbox: | Automatic | Transmission type,
final drive: | Chain | | Driveline: | CVT | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Steel tube | | Front suspension: | Telescopic fork | | Front suspension travel: | 90 mm (3.5 inches) | | Rear suspension: | Dual-damper unit swing arm | | Rear suspension travel: | 85 mm (3.3 inches) | | Front tyre dimensions: | 120/70-16 | | Rear tyre dimensions: | 140/70-15 | | Front brakes: | Single disc. Hydraulic | | Front brakes diameter: | 256 mm (10.1 inches) | | Rear brakes: | Single disc. Hydraulic | | Rear brakes diameter: | 256 mm (10.1 inches) | | Wheels: | 12-spoke cast aluminium | | Physical measures and capacities |
|---|
| Dry weight: | 177.0 kg (390.2 pounds) | | Power/weight ratio: | 0.1288 HP/kg | | Seat height: | 815 mm (32.1 inches) If adjustable, lowest setting. | | Overall height: | 1,290 mm (50.8 inches) | | Overall length: | 2,175 mm (85.6 inches) | | Wheelbase: | 1,545 mm (60.8 inches) | | Fuel capacity: | 13.50 litres (3.57 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Light: | Dual front light | | Seat: | 2-person seat | | Color options: | White, black, silver | | Further information |
|---|
