| General information |
|---|

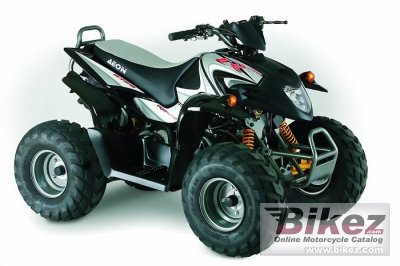

| Model: | Aeon Revo 100 |
| Year: | 2010 |
| Category: | ATV |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 96.00 ccm (5.86 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Power: | 6.60 HP (4.8 kW)) @ 6300 RPM |
| Torque: | 6.12 Nm (0.6 kgf-m or 4.5 ft.lbs) @ 3900 RPM |
| Compression: | 6.2:1 |
| Bore x stroke: | 52.0 x 45.0 mm (2.0 x 1.8 inches) |
| Fuel system: | Carburettor |
| Ignition: | CDI |
| Lubrication system: | Pump for automatically oil-fuel mixing |
| Cooling system: | Air |
| Gearbox: | Automatic |
Transmission type,
final drive: | Belt |
| Clutch: | Dry centrifugal |
| Chassis, suspension, brakes and wheels |
|---|
| Front tyre dimensions: | 19/7-8 |
| Rear tyre dimensions: | 18/10-8 |
| Front brakes: | Expanding brake (drum brake) |
| Rear brakes: | Single disc |
| Physical measures and capacities |
|---|
| Dry weight: | 119.0 kg (262.4 pounds) |
| Power/weight ratio: | 0.0555 HP/kg |
| Seat height: | 710 mm (28.0 inches) If adjustable, lowest setting. |
| Overall height: | 980 mm (38.6 inches) |
| Overall length: | 1,460 mm (57.5 inches) |
| Overall width: | 930 mm (36.6 inches) |
| Ground clearance: | 90 mm (3.5 inches) |
| Wheelbase: | 970 mm (38.2 inches) |
| Fuel capacity: | 5.00 litres (1.32 gallons) |
| Oil capacity: | 1.00 litres (0.07 quarts) |
| Other specifications |
|---|
| Starter: | Electric & kick |
| Color options: | Red/white, black/white |
