2010 Aeon Crossland 300 specifications, pictures, reviews and rating

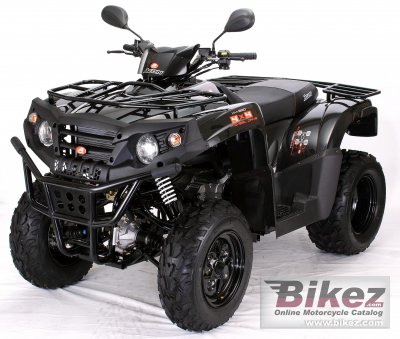

Picture credits - Aeon. Click to submit more pictures.
|Model:||Aeon Crossland 300|
|Rating:||67.8 out of 100. Show full rating and compare with other bikes|
|Engine and transmission|
|Displacement:||272.30 ccm (16.62 cubic inches)|
|Engine type:||Single cylinder, four-stroke|
|Power:||18.10 HP (13.2 kW)) @ 6500 RPM|
|Torque:||22.00 Nm (2.2 kgf-m or 16.2 ft.lbs) @ 5500 RPM|
|Bore x stroke:||72.7 x 65.6 mm (2.9 x 2.6 inches)|
|Fuel system:||Carburettor. Keihin PTG 22|
|Lubrication system:||Wet sump, oil pump pressurized|
|Shaft drive (cardan)|
|Chassis, suspension, brakes and wheels|
|Frame type:||Type High Resistance Steel Pipes|
|Front suspension:||Double Swing Arm|
|Front suspension travel:||178 mm (7.0 inches)|
|Rear suspension:||Swing Arm|
|Rear suspension travel:||165 mm (6.5 inches)|
|Front tyre dimensions:||22/7-10|
|Rear tyre dimensions:||22/10-9|
|Front brakes:||Double disc|
|Front brakes diameter:||172 mm (6.8 inches)|
|Rear brakes:||Expanding brake (drum brake)|
|Rear brakes diameter:||222 mm (8.7 inches)|
|Physical measures and capacities|
|Dry weight:||233.0 kg (513.7 pounds)|
|Weight incl. oil, gas, etc:||50.0 kg (110.2 pounds)|
|Power/weight ratio:||0.0777 HP/kg|
|Seat height:||850 mm (33.5 inches) If adjustable, lowest setting.|
|Overall height:||1,170 mm (46.1 inches)|
|Overall length:||1,980 mm (78.0 inches)|
|Overall width:||1,080 mm (42.5 inches)|
|Ground clearance:||200 mm (7.9 inches)|
|Wheelbase:||1,230 mm (48.4 inches)|
|Fuel capacity:||14.00 litres (3.70 gallons)|
|Color options:||Red, military green|
