| General information |
|---|

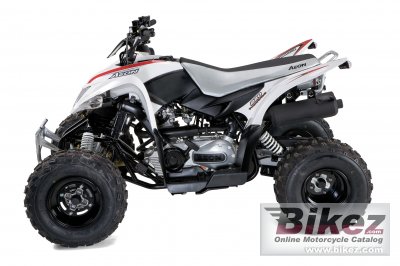

| Model: | Aeon Cobra 220 |
| Year: | 2009 |
| Category: | ATV |
| Rating: | 62 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 196.00 ccm (11.96 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 12.06 HP (8.8 kW)) @ 6800 RPM |
| Torque: | 13.60 Nm (1.4 kgf-m or 10.0 ft.lbs) @ 5750 RPM |
| Compression: | 9.1:1 |
| Bore x stroke: | 65.0 x 59.0 mm (2.6 x 2.3 inches) |
| Fuel system: | Carburettor. Keihin PTG 22 |
| Ignition: | C.D.I. |
| Lubrication system: | Wet sump, Oil pump pressurized |
| Cooling system: | Air |
| Gearbox: | Automatic |
Transmission type,
final drive: | Chain |
| Clutch: | Centrifugal clutch |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Tube |
| Front suspension: | Dual hydraulic shock, Double wishbone |
| Front suspension travel: | 153 mm (6.0 inches) |
| Rear suspension: | Single hydraulic shock, Unit swing arm |
| Rear suspension travel: | 165 mm (6.5 inches) |
| Front tyre dimensions: | 21/7-10 |
| Rear tyre dimensions: | 20/10-9 |
| Front brakes: | Double disc |
| Rear brakes: | Expanding brake (drum brake) |
| Physical measures and capacities |
|---|
| Dry weight: | 193.0 kg (425.5 pounds) |
| Power/weight ratio: | 0.0625 HP/kg |
| Seat height: | 790 mm (31.1 inches) If adjustable, lowest setting. |
| Overall height: | 1,060 mm (41.7 inches) |
| Overall length: | 1,730 mm (68.1 inches) |
| Overall width: | 1,040 mm (40.9 inches) |
| Ground clearance: | 178 mm (7.0 inches) |
| Wheelbase: | 1,155 mm (45.5 inches) |
| Fuel capacity: | 7.30 litres (1.93 gallons) |
| Other specifications |
|---|
| Starter: | Electric & kick |
