| General information |
|---|

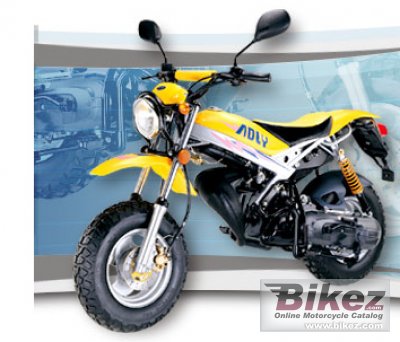

| Model: | Adly RT-90 Road Tracer | | Year: | 2009 | | Category: | Minibike, sport | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 85.80 ccm (5.24 cubic inches) | | Engine type: | Single cylinder | | Stroke: | 4 | | Bore x stroke: | 47.0 x 49.5 mm (1.9 x 1.9 inches) | | Fuel system: | Carburettor | | Fuel control: | SOHC | | Ignition: | C.D.I | | Starter: | Electric & kick | | Cooling system: | Air | | Gearbox: | Automatic | Transmission type
final drive: | Belt | | Physical measures |
|---|
| Dry weight: | 78.0 kg (172.0 pounds) | | Overall length: | 1,620 mm (63.8 inches) | | Overall width: | 700 mm (27.6 inches) | | Wheelbase: | 1,100 mm (43.3 inches) | | Chassis and dimensions |
|---|
| Front suspension: | Telescopic hydraulic fork | | Rear suspension: | Oil Damped, single shock | | Front tyre dimensions: | 120/90-12 | | Rear tyre dimensions: | 120/90-12 | | Front brakes: | Single disc | | Rear brakes: | Expanding brake (drum brake) | | Speed and acceleration |
|---|
| Other specifications |
|---|
| Oil capacity: | 1.00 litres (0.07 quarts) | | Color options: | Yellow | | Further information |
|---|
