| Yamaha's profilation of this bike |
| A pair of large, color-matched, locking hard sidebags make the Stratoliner Deluxe excellent for long hauls and short trips, and offer even more capacity than the Stratoliner sidebags. |
| General information |
|---|

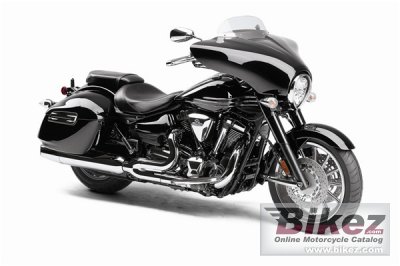

| Model: | Yamaha Star Stratoliner Deluxe | | Year: | 2010 | | Category: | Custom / cruiser | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Price as new (MSRP): | US$ 17490. Prices depend on country, taxes, accessories, etc. | | Engine and transmission |
|---|
| Displacement: | 1851.85 ccm (113.00 cubic inches) | | Engine type: | V4, four-stroke | | Compression: | 9.5:1 | | Bore x stroke: | 100.0 x 118.0 mm (3.9 x 4.6 inches) | | Valves per cylinder: | 4 | | Fuel system: | Injection. Twin-Bore electronic fuel injection;throttle position sensor | | Fuel control: | OHV | | Ignition: | TCI: Transistor Controlled Ignition | | Cooling system: | Air | | Gearbox: | 5-speed | Transmission type,
final drive: | Belt | | Clutch: | Wet multiplate clutch | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Aluminum | | Front suspension: | 46mm telescopic fork | | Front suspension travel: | 130 mm (5.1 inches) | | Rear suspension: | Single shock | | Rear suspension travel: | 109 mm (4.3 inches) | | Front tyre dimensions: | 130/70-18 | | Rear tyre dimensions: | 190/60-17 | | Front brakes: | Double disc | | Front brakes diameter: | 298 mm (11.7 inches) | | Rear brakes: | Single disc | | Rear brakes diameter: | 320 mm (12.6 inches) | | Physical measures and capacities |
|---|
| Seat height: | 706 mm (27.8 inches) If adjustable, lowest setting. | | Overall height: | 1,514 mm (59.6 inches) | | Overall length: | 2,581 mm (101.6 inches) | | Overall width: | 1,100 mm (43.3 inches) | | Ground clearance: | 155 mm (6.1 inches) | | Wheelbase: | 1,715 mm (67.5 inches) | | Fuel capacity: | 17.03 litres (4.50 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Color options: | Raven | | Further information |
|---|
