| Yamaha's profilation of this bike |
| Industry-exclusive, fully automatic Ultramatic® transmission is the most advanced drive system in ATV-ing. An automatic centrifugal clutch maintains constant belt tension for reduced belt wear and class-exclusive all-wheel downhill engine braking in 4WD mode. |
| General information |
|---|

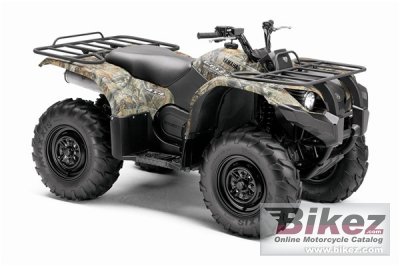

| Model: | Yamaha Grizzly 450 Auto 4x4 IRS | | Year: | 2010 | | Category: | ATV | | Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. | | Price as new (MSRP): | US$ 7149. Prices depend on country, taxes, accessories, etc. | | Engine and transmission |
|---|
| Displacement: | 421.00 ccm (25.69 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Compression: | 10.0:1 | | Bore x stroke: | 84.5 x 75.0 mm (3.3 x 3.0 inches) | | Fuel system: | Carburettor. Mikuni® 33mm BSR | | Fuel control: | SOHC | | Ignition: | DC-CDI | | Cooling system: | Liquid | | Gearbox: | Automatic | Transmission type,
final drive: | Shaft drive (cardan) | | Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Independent double wishbone | | Front suspension travel: | 127 mm (5.0 inches) | | Rear suspension: | Independent double wishbone | | Rear suspension travel: | 127 mm (5.0 inches) | | Front tyre dimensions: | 25/8-AT12 | | Rear tyre dimensions: | 25/10-AT12 | | Front brakes: | Double disc | | Rear brakes: | Single disc | | Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 284.9 kg (628.0 pounds) | | Seat height: | 851 mm (33.5 inches) If adjustable, lowest setting. | | Overall length: | 1,994 mm (78.5 inches) | | Ground clearance: | 274 mm (10.8 inches) | | Wheelbase: | 1,232 mm (48.5 inches) | | Fuel capacity: | 15.14 litres (4.00 gallons) | | Other specifications |
|---|
| Starter: | Electric & kick | | Color options: | Realtree AP Camo, Hunter Green, Steel Blue | | Comments: | Yamaha On-Command® pushbutton; 3-way locking differential; 2WD, 4WD, locked 4WD; shaft drive. | | Further information |
|---|
