| Yamaha's profilation of this bike |
| Light weight and advanced design produce an ATV with light steering and a class-leading turning radius, for excellent maneuverability and nimble handling. |
| General information |
|---|

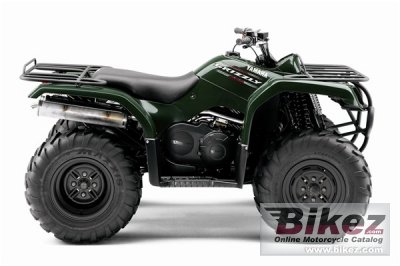

| Model: | Yamaha Grizzly 350 Automatic | | Year: | 2010 | | Category: | ATV | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Price as new (MSRP): | US$ 4799. Prices depend on country, taxes, accessories, etc. | | Engine and transmission |
|---|
| Displacement: | 348.00 ccm (21.23 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Compression: | 9.2:1 | | Bore x stroke: | 83.0 x 64.5 mm (3.3 x 2.5 inches) | | Fuel system: | Carburettor. Mikuni 33mm BSR | | Fuel control: | SOHC | | Ignition: | DC-CDI | | Cooling system: | Oil & air | | Gearbox: | 5-speed | Transmission type,
final drive: | Shaft drive (cardan) | | Chassis, suspension, brakes and wheels |
|---|
| Trail: | 160 mm (6.3 inches) | | Front suspension: | Independent double wishbone | | Front suspension travel: | 180 mm (7.1 inches) | | Rear suspension: | Swingarm | | Rear suspension travel: | 127 mm (5.0 inches) | | Front tyre dimensions: | 25/8-AT12 | | Rear tyre dimensions: | 25/10-AT12 | | Front brakes: | Double disc | | Rear brakes: | Expanding brake (drum brake) | | Physical measures and capacities |
|---|
| Weight incl. oil, gas, etc: | 244.9 kg (540.0 pounds) | | Seat height: | 828 mm (32.6 inches) If adjustable, lowest setting. | | Overall height: | 1,120 mm (44.1 inches) | | Overall length: | 1,984 mm (78.1 inches) | | Overall width: | 1,085 mm (42.7 inches) | | Ground clearance: | 246 mm (9.7 inches) | | Wheelbase: | 1,232 mm (48.5 inches) | | Fuel capacity: | 14.38 litres (3.80 gallons) | | Other specifications |
|---|
| Color options: | Hunter Green | | Comments: | 2WD
| | Further information |
|---|
| Parts and accessories | Our partner CMSNL
ships low cost OEM motorcycle parts to
Australia, Austria, Bahamas, Belgium, Canada, China, Croatia, Cyprus, Czech Republic, Denmark, Estonia, Finland, France, Germany,
Greece, Hong Kong, Hungary, Iceland, India, Ireland, Italy, Japan, Kuwait, Latvia, Lithuania, Luxembourg, Macedonia, Malta, Montenegro,
The Netherlands, New Zealand, Norway, Poland, Portugal, Serbia, Slovakia, Slovenia, South Africa, Spain, Sweden, Switzerland,
Taiwan, Ukraine, United Kingdom, The United States and more. Or check out parts and accessories from our other partners. |
| Ask questions | Join the 10 Yamaha Grizzly 350 Automatic discussion group. |
| Insurance, loans, tests
| Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc. |
| Related bikes | List related bikes for comparison of specs |
