| General information |
|---|

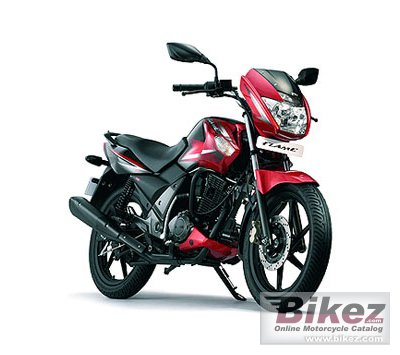

| Model: | TVS Flame |
| Year: | 2009 |
| Category: | Allround |
| Rating: | 56.2 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 124.80 ccm (7.62 cubic inches) |
| Engine type: | Single cylinder |
| Stroke: | 4 |
| Power: | 10.32 HP (7.5 kW)) @ 7500 RPM |
| Torque: | 7.50 Nm (0.8 kgf-m or 5.5 ft.lbs) @ 5000 RPM |
| Compression: | 9.3:1 |
| Bore x stroke: | 51.0 x 48.8 mm (2.0 x 1.9 inches) |
| Fuel system: | Carburettor. VM type |
| Fuel control: | OHC |
| Ignition: | Digital Ignition |
| Starter: | Electric & kick |
| Cooling system: | Air |
| Gearbox: | 4-speed |
Transmission type
final drive: | Chain |
| Clutch: | Multi-Plate et type |
| Physical measures |
|---|
| Weight incl. oil, gas, etc: | 109.0 kg (240.3 pounds) |
| Overall height: | 1,070 mm (42.1 inches) |
| Overall length: | 2,030 mm (79.9 inches) |
| Overall width: | 4,000 mm (157.5 inches) |
| Ground clearance: | 165 mm (6.5 inches) |
| Wheelbase: | 1,260 mm (49.6 inches) |
| Chassis and dimensions |
|---|
| Front suspension: | Hydraulic, Telescopic Type, 125mm travel |
| Front suspension travel: | 125 mm (4.9 inches) |
| Rear suspension: | Hydraulic, ‘SNS’ Type |
| Rear suspension travel: | 105 mm (4.1 inches) |
| Front tyre dimensions: | 90/90-17 |
| Rear tyre dimensions: | 90/90-18 |
| Front brakes: | Single disc |
| Rear brakes: | Expanding brake (drum brake) |
| Speed and acceleration |
|---|
| Other specifications |
|---|
| Fuel capacity: | 16.00 litres (4.23 gallons) |
| Reserve fuel capacity: | 2.00 litres (0.53 gallons) |
| Comments: | TVS bikes are made in India in cooperation with Suzuki. |
