| General information |
|---|

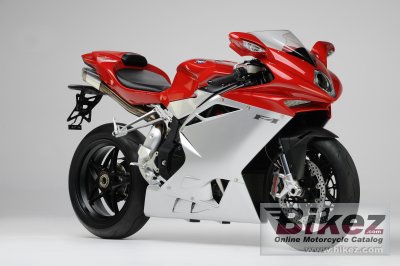

| Model: | MV Agusta F4 1000 R |
| Year: | 2010 |
| Category: | Sport |
| Rating: | 67.9 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 1078.30 ccm (65.80 cubic inches) |
| Engine type: | In-line four, four-stroke |
| Power: | 186.00 HP (135.8 kW)) @ 12900 RPM |
| Torque: | 144.00 Nm (14.7 kgf-m or 106.2 ft.lbs) @ 9000 RPM |
| Top speed: | 305.0 km/h (189.5 mph) |
| Max RPM: | 13500 |
| Compression: | 13.1:1 |
| Bore x stroke: | 79.0 x 55.0 mm (3.1 x 2.2 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection |
| Fuel control: | DOHC |
| Ignition: | Magneti Marelli IAW 7BM ignition - injection integrated system with Mikuni throttle body; induction discharge electronic ignition; Sequential timed “Multipoint” electronic injection ; Variable height intake ducts with Torque Shift System (TSS) |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Slipper clutch |
| Exhaust system: | 4-1 exhaust system with valve |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | CrMo Steel tubular trellis |
| Trail: | 100 mm (4.0 inches) |
| Front suspension: | Upside-down telescopic hydraulic fork with rebound-compression damping and spring preload adjustment |
| Front suspension travel: | 120 mm (4.7 inches) |
| Rear suspension: | Progressive, single shock absorber with rebound compression damping and spring preload |
| Rear suspension travel: | 120 mm (4.7 inches) |
| Front tyre dimensions: | 120/70-ZR17 |
| Rear tyre dimensions: | 190/55-ZR17 |
| Front brakes: | Double disc. 4-piston |
| Front brakes diameter: | 320 mm (12.6 inches) |
| Rear brakes: | Single disc. 4-piston |
| Rear brakes diameter: | 210 mm (8.3 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 192.5 kg (424.4 pounds) |
| Power/weight ratio: | 0.9662 HP/kg |
| Seat height: | 810 mm (31.9 inches) If adjustable, lowest setting. |
| Overall height: | 680 mm (26.8 inches) |
| Overall length: | 2,100 mm (82.7 inches) |
| Overall width: | 750 mm (29.5 inches) |
| Ground clearance: | 115 mm (4.5 inches) |
| Wheelbase: | 1,430 mm (56.3 inches) |
| Fuel capacity: | 17.00 litres (4.49 gallons) |
| Reserve fuel capacity: | 4.00 litres (1.06 gallons) |
| Other specifications |
|---|
| Starter: | Electric |
| Color options: | Gray/red, black, gray |
| Comments: | TC MK II traction control system, adjustable on 8 levels. A power reduced version is available. |
