| Malaguti's profilation of this bike |
| MADISON 3 is the third new born among the Madison ´family´ vehicles: 75,000 customers have chosen to ride a Madison since 1999. |
| General information |
|---|

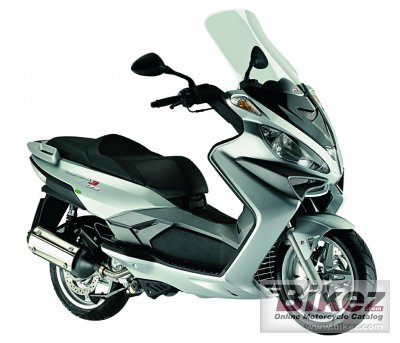

| Model: | Malaguti Madison 3 250 i.e. | | Year: | 2010 | | Category: | Scooter | | Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. | | Engine and transmission |
|---|
| Displacement: | 244.00 ccm (14.89 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Power: | 22.09 HP (16.1 kW)) @ 8500 RPM | | Torque: | 21.50 Nm (2.2 kgf-m or 15.9 ft.lbs) @ 6750 RPM | | Bore x stroke: | 72.0 x 60.0 mm (2.8 x 2.4 inches) | | Valves per cylinder: | 4 | | Fuel system: | Injection | | Fuel control: | SOHC | | Ignition: | Electronic with CDI unit | | Cooling system: | Liquid | | Gearbox: | Automatic | Transmission type,
final drive: | Belt | | Clutch: | Automatic centrifugal dry clutch | | Exhaust system: | Catalyst. Euro 3. | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | High resistance braced tubular steel | | Front suspension: | Hydraulic fork, 36 mm | | Rear suspension: | By swinging engine and 2 hydraulic shock absorbers | | Front tyre dimensions: | 120/70-14 | | Rear tyre dimensions: | 140/60-14 | | Front brakes: | Single disc | | Front brakes diameter: | 240 mm (9.4 inches) | | Rear brakes: | Single disc | | Rear brakes diameter: | 240 mm (9.4 inches) | | Physical measures and capacities |
|---|
| Dry weight: | 158.0 kg (348.3 pounds) | | Power/weight ratio: | 0.1398 HP/kg | | Seat height: | 795 mm (31.3 inches) If adjustable, lowest setting. | | Overall height: | 1,460 mm (57.5 inches) | | Overall length: | 1,980 mm (78.0 inches) | | Wheelbase: | 1,410 mm (55.5 inches) | | Fuel capacity: | 8.50 litres (2.25 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Color options: | Arctic silver, velvet blue
orange, velvet black | | Further information |
|---|
