| KTM's profilation of this bike |
| Are you looking for the ultimate SX fighting machine¿ Power and torque in spades¿ Then give yourself the power of the ATV performance champion in the field of quad cross. Here, brutal acceleration meets excellent handling, perfect ergonomics meet unbeatable state of the art technical components. |
| General information |
|---|

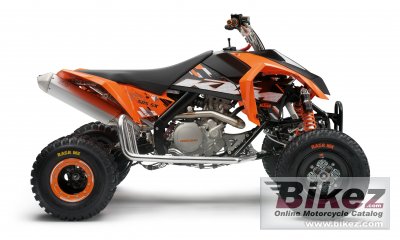

| Model: | KTM 505 SX ATV | | Year: | 2010 | | Category: | ATV | | Rating: | 68.3 out of 100. Show full rating and compare with other bikes | | Engine and transmission |
|---|
| Displacement: | 477.00 ccm (29.11 cubic inches) | | Engine type: | Single cylinder, four-stroke | | Compression: | 12.5:1 | | Bore x stroke: | 100.0 x 60.8 mm (3.9 x 2.4 inches) | | Fuel system: | Carburettor. Keihin FCR MX 41 | | Fuel control: | DOHC | | Ignition: | Kokusan digital | | Lubrication system: | Dry sump, pressure lubrication with 2 Eaton pumps | | Cooling system: | Liquid | | Gearbox: | 5-speed | | Clutch: | Wet mDouble disk clutch, operated hydraulically | | Exhaust system: | Aluminum SX Racing w / Spark Arrestor | | Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Chromoly | | Front suspension: | WP fully adjustable, twin A-arms | | Front suspension travel: | 244 mm (9.6 inches) | | Rear suspension: | WP PDS mono-shock, fully adjustable, swingarm | | Rear suspension travel: | 258 mm (10.2 inches) | | Front tyre dimensions: | 20/6-10 | | Rear tyre dimensions: | 18/10-8 | | Front brakes: | Single disc | | Front brakes diameter: | 180 mm (7.1 inches) | | Rear brakes: | Single disc | | Rear brakes diameter: | 200 mm (7.9 inches) | | Physical measures and capacities |
|---|
| Dry weight: | 165.0 kg (363.8 pounds) | | Seat height: | 795 mm (31.3 inches) If adjustable, lowest setting. | | Ground clearance: | 265 mm (10.4 inches) | | Wheelbase: | 1,280 mm (50.4 inches) | | Fuel capacity: | 10.30 litres (2.72 gallons) | | Other specifications |
|---|
| Starter: | Electric | | Color options: | Orange/black | | Further information |
|---|
| Parts and accessories | Check out parts and accessories from our other partners. |
| Ask questions | Join the 10 KTM 505 SX ATV discussion group. |
| Insurance, loans, tests
| Check out insurance here. Search the web for dealers, loan costs, tests, customizing, etc. |
| Related bikes | List related bikes for comparison of specs |
