| General information |
|---|

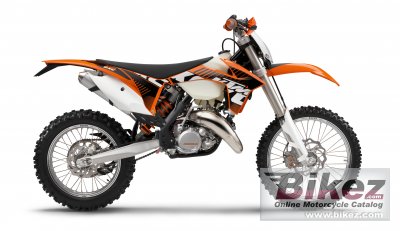

| Model: | KTM 125 EXC |
| Year: | 2012 |
| Category: | Enduro / offroad |
| Rating: | 61.1 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 124.80 ccm (7.62 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Engine details: | Reed intake and exhaust control |
| Compression: | 12.5:1 |
| Bore x stroke: | 54.0 x 54.5 mm (2.1 x 2.1 inches) |
| Fuel system: | Carburettor. Keihin PWK 36 S AG |
| Ignition: | Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment, type Kokusan |
| Lubrication system: | Mixture oil lubrication 1:60 |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet mDouble disk clutch / hydraulically operated |
| Driveline: | 14:50 (13:50) Primary gear 23:73. |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Central tube frame made of chrome molybdenum steel tubing |
| Rake (fork angle): | 26.5° |
| Front suspension: | WP Suspension Up Side Down 4860 MXMA PA |
| Front suspension travel: | 300 mm (11.8 inches) |
| Rear suspension: | WP Suspension PDS 5018 DCC |
| Rear suspension travel: | 335 mm (13.2 inches) |
| Front tyre dimensions: | 90/90-21 |
| Rear tyre dimensions: | 120/90-18 |
| Front brakes: | Single disc |
| Front brakes diameter: | 260 mm (10.2 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 95.0 kg (209.4 pounds) |
| Seat height: | 960 mm (37.8 inches) If adjustable, lowest setting. |
| Ground clearance: | 355 mm (14.0 inches) |
| Wheelbase: | 1,471 mm (57.9 inches) |
| Fuel capacity: | 9.50 litres (2.51 gallons) |
| Other specifications |
|---|
| Starter: | Kick |
| Color options: | Orange/white/black |
