| General moped information |
|---|

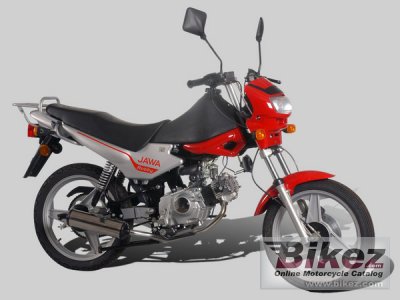

| Model: | Jawa-CZ 50 Robby |
| Year: | 2007 |
| Category: | Sport |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 49.50 ccm (3.02 cubic inches) |
| Engine type: | Single cylinder |
| Stroke: | 4 |
| Power: | 3.35 HP (2.4 kW)) @ 8500 RPM |
| Torque: | 3.20 Nm (0.3 kgf-m or 2.4 ft.lbs) @ 5500 RPM |
| Compression: | 8.5:1 |
| Bore x stroke: | 39.0 x 41.4 mm (1.5 x 1.6 inches) |
| Fuel system: | Carburettor |
| Starter: | Electric & kick |
| Cooling system: | Air |
| Gearbox: | 4-speed |
Transmission type
final drive: | Chain |
| Physical measures |
|---|
| Dry weight: | 80.0 kg (176.4 pounds) |
| Seat height: | 730 mm (28.7 inches) If adjustable, lowest setting. |
| Wheelbase: | 1,200 mm (47.2 inches) |
| Chassis and dimensions |
|---|
| Front suspension: | Telescopic forks 80mm |
| Rear suspension: | Hydraulic telescopic 70mm |
| Front tyre dimensions: | -. |
| Front brakes: | Single disc |
| Front brakes diameter: | 200 mm (7.9 inches) |
| Rear brakes: | Expanding brake (drum brake) |
| Rear brakes diameter: | 124 mm (4.9 inches) |
| Speed and acceleration |
|---|
| Top speed: | 48.0 km/h (29.8 mph) |
| Power/weight ratio: | 0.0419 HP/kg |
| Other specifications |
|---|
| Color options: | Red/black/grey |
