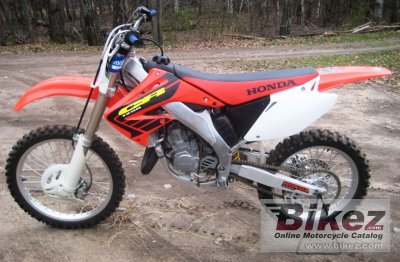

General informationModel: Honda CR 125 Year: 2002 Category: Cross / motocross Rating: 58.6 out of 100. Show full rating and compare with other bikes Safety: See our safety campaign with the high safety rated bikes in this category.
Engine and transmissionDisplacement :125.00 ccm (7.63 cubic inches) Engine type: Single cylinder Stroke: 2 Compression :8.7:1 Bore x stroke :54.0 x 54.0 mm (2.1 x 2.1 inches) Fuel system: Carburettor. Mikuni Fuel control: Port control Ignition: CDI Starter: Kick Lubrication system: Pre mix Cooling system: Liquid Transmission type final drive: Chain Clutch: wet, multi plate. constant mesh Physical measuresDry weight: 87.5 kg (192.9 pounds) Seat height: 947 mm (37.3 inches) If adjustable, lowest setting. Overall height: 1,278 mm (50.3 inches) Overall length: 2,151 mm (84.7 inches) Overall width: 823 mm (32.4 inches) Ground clearance: 345 mm (13.6 inches) Wheelbase :1,458 mm (57.4 inches) Chassis and dimensionsFrame type: Aluminum Frame Rake (fork angle): 25.0° Trail: 101 mm (4.0 inches) Front suspension : Inverted forks Front suspension travel: 272 mm (10.7 inches) Rear suspension : Pro Link Rear suspension travel: 318 mm (12.5 inches) Front tyre dimensions: 80/100-21 51M Rear tyre dimensions: 100/90-19 57M Front brakes: Single disc Front brakes diameter: 1,316 mm (51.8 inches) Rear brakes: Single disc Rear brakes diameter: 1,539 mm (60.6 inches) Speed and accelerationTop speed: 120.0 km/h (74.6 mph) Other specificationsFuel capacity: 7.70 litres (2.03 gallons) Further informationParts and accessories Check out parts and accessories from our partners.
