| General information |
|---|

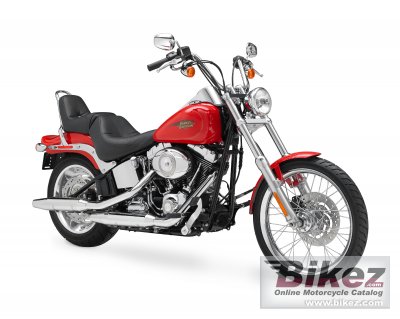

| Model: | Harley-Davidson FXSTC Softail Custom |
| Year: | 2010 |
| Category: | Custom / cruiser |
| Rating: | 75.2 out of 100. Show full rating and compare with other bikes |
| Price as new (MSRP): | US$ 16999. Prices depend on country, taxes, accessories, etc. |
| Engine and transmission |
|---|
| Displacement: | 1584.00 ccm (96.66 cubic inches) |
| Engine type: | V2, four-stroke |
| Torque: | 127.00 Nm (12.9 kgf-m or 93.7 ft.lbs) @ 3000 RPM |
| Compression: | 9.2:1 |
| Bore x stroke: | 95.3 x 111.1 mm (3.8 x 4.4 inches) |
| Valves per cylinder: | 2 |
| Fuel system: | Injection. Electronic Sequential Port Fuel Injection |
| Fuel control: | OHV |
| Lubrication system: | Pressurized, dry-sump |
| Cooling system: | Air |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Belt |
| Clutch: | 9-plate, wet |
| Fuel consumption: | 6.72 litres/100 km (14.9 km/l or 35.00 mpg) |
| Greenhouse gases: | 155.9 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Exhaust system: | Chrome, staggered shorty exhaust with dual mufflers |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Mild steel tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded. |
| Rake (fork angle): | 32.3° |
| Trail: | 127 mm (5.0 inches) |
| Front suspension: | 41.30 mm telescopic, chrome dust covers |
| Front suspension travel: | 142 mm (5.6 inches) |
| Rear suspension: | Hidden, horizontal-mounted, coil-over |
| Rear suspension travel: | 109 mm (4.3 inches) |
| Front tyre dimensions: | MT90-21 |
| Rear tyre dimensions: | 200/55-R17 |
| Front brakes: | Single disc. 4-piston |
| Front brakes diameter: | 292 mm (11.5 inches) |
| Rear brakes: | Single disc. 2-piston |
| Rear brakes diameter: | 292 mm (11.5 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 304.0 kg (670.2 pounds) |
| Weight incl. oil, gas, etc: | 319.0 kg (703.3 pounds) |
| Seat height: | 670 mm (26.4 inches) If adjustable, lowest setting. |
| Overall height: | 1,313 mm (51.7 inches) |
| Overall length: | 2,400 mm (94.5 inches) |
| Overall width: | 927 mm (36.5 inches) |
| Ground clearance: | 129 mm (5.1 inches) |
| Wheelbase: | 1,635 mm (64.4 inches) |
| Fuel capacity: | 19.70 litres (5.20 gallons) |
| Oil capacity: | 3.10 litres (0.20 quarts) |
| Other specifications |
|---|
| Starter: | Electric |
| Color options: | Vivid Black, Scarlet Red, Red Hot Sunglo, Flame Blue Pearl/Brilliant Silver Pearl, Merlot Sunglo/Cherry Red Sunglo, White Ice Pearl/Black Ice Pearl |
