| General information |
|---|

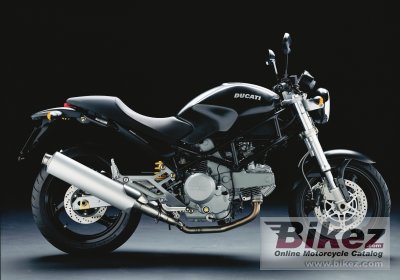

| Model: | Ducati Monster 620 Dark |
| Year: | 2006 |
| Category: | Naked bike |
| Rating: | 67.6 out of 100. Show full rating and compare with other bikes |
| Safety: | See our safety campaign with the high safety rated bikes in this category.
|
| Engine and transmission |
|---|
| Displacement: | 618.00 ccm (37.71 cubic inches) |
| Engine type: | V2 |
| Stroke: | 4 |
| Power: | 62.22 HP (45.4 kW)) @ 9500 RPM |
| Torque: | 41.20 Nm (4.2 kgf-m or 30.4 ft.lbs) |
| Compression: | 10.5:1 |
| Bore x stroke: | 80.0 x 61.5 mm (3.1 x 2.4 inches) |
| Fuel system: | Injection. Marelli electronic fuel injection, 45 mm throttle body |
| Valves per cylinder: | 2 |
| Fuel control: | Desmodromic valve control |
| Cooling system: | Air |
| Gearbox: | 6-speed |
Transmission type
final drive: | Chain |
| Clutch: | APTC wet multiplate with hydraulic control |
| Physical measures |
|---|
| Dry weight: | 168.0 kg (370.4 pounds) |
| Seat height: | 770 mm (30.3 inches) If adjustable, lowest setting. |
| Wheelbase: | 1,440 mm (56.7 inches) |
| Chassis and dimensions |
|---|
| Frame type: | Tubular steel trellis |
| Rake (fork angle): | 24.0° |
| Front suspension: | Marzocchi 43 mm upside-down fork |
| Front suspension travel: | 130 mm (5.1 inches) |
| Rear suspension: | Progressive linkage with preload and rebound adjustable Sachs monoshock |
| Rear suspension travel: | 148 mm (5.8 inches) |
| Front tyre dimensions: | 120/60-ZR17 |
| Rear tyre dimensions: | 160/60-ZR17 |
| Front brakes: | Single disc |
| Front brakes diameter: | 300 mm (11.8 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 245 mm (9.6 inches) |
| Exhaust system: | 2 aluminium mufflers |
| Speed and acceleration |
|---|
| Power/weight ratio: | 0.3704 HP/kg |
| Other specifications |
|---|
| Fuel capacity: | 14.00 litres (3.70 gallons) |
| Color options: | Matte black/black |
